Junction box

WKE 6 T 3D01

Productnumber: 86963301 | Dimensions: 200 x 250 x 120 mm

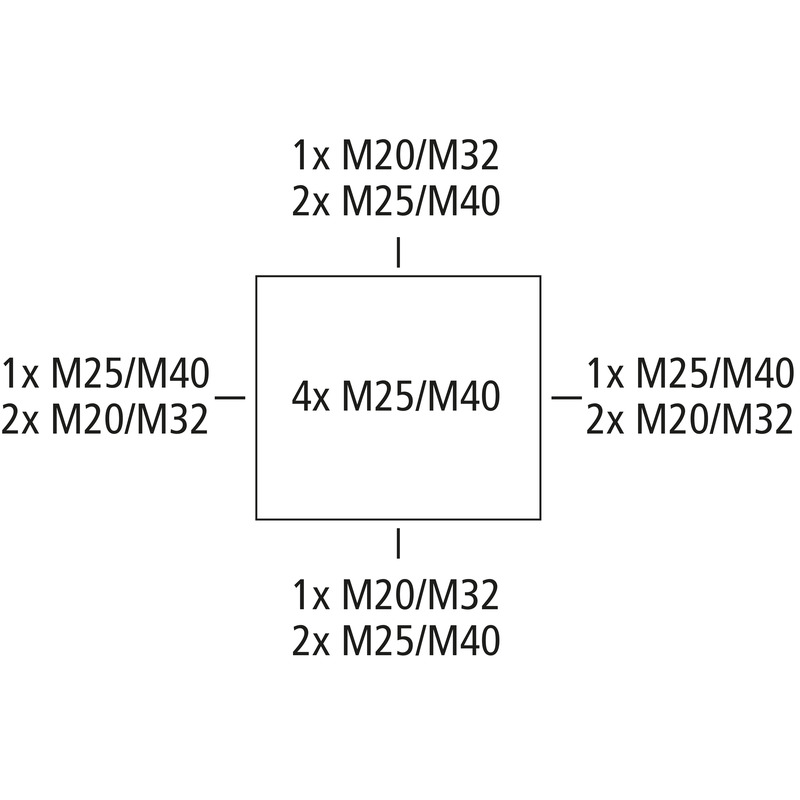

Junction box, protection class IP66, U_i=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), knockouts, M20/M25/M32/M40, (4 rear, 12 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Pressure and suction-tight according to Gotthard guideline. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder, quick assembly thanks to external fixing lug made of stainless steel 1.4571. Cover screws made of stainless steel 1.4578.

orange, Connection box 5-pole 1.5 - 16 mm², junction box 3-pole 1.5 - 10 mm², fuse in branch 3 x socket D01 (without insert), max. no. of clamped wires per terminal point 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²

Accessories supplied:
2 x cable gland M40, sealing range 16 - 28 mm, 1 x cable gland M32, sealing range 11 - 21 mm, each 1 x double membrane seals M32 and M40 for sealing accidentally opened knockouts.

Find wholesaler

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	1,5 mm²
max. wire cross section (wire branching)	4 mm²
Min. conductor cross section	1,5 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP66
secured junction	yes
Circuit integrity class	E30/E60/E90
Number of poles (T-piece)	3
Number of poles (feed-through)	5
UL Type Rating	other
Number of fuses in T-piece	3

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Fused T-piece

Dimensions

Width	200 mm
Length	250 mm
Height	120 mm
Inner length	235 mm
Inner width	185 mm
Inner height	102 mm
Weight	2.2 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK08
Sealable	yes
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902652365
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Stainless steel V4A

Certificates

Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
