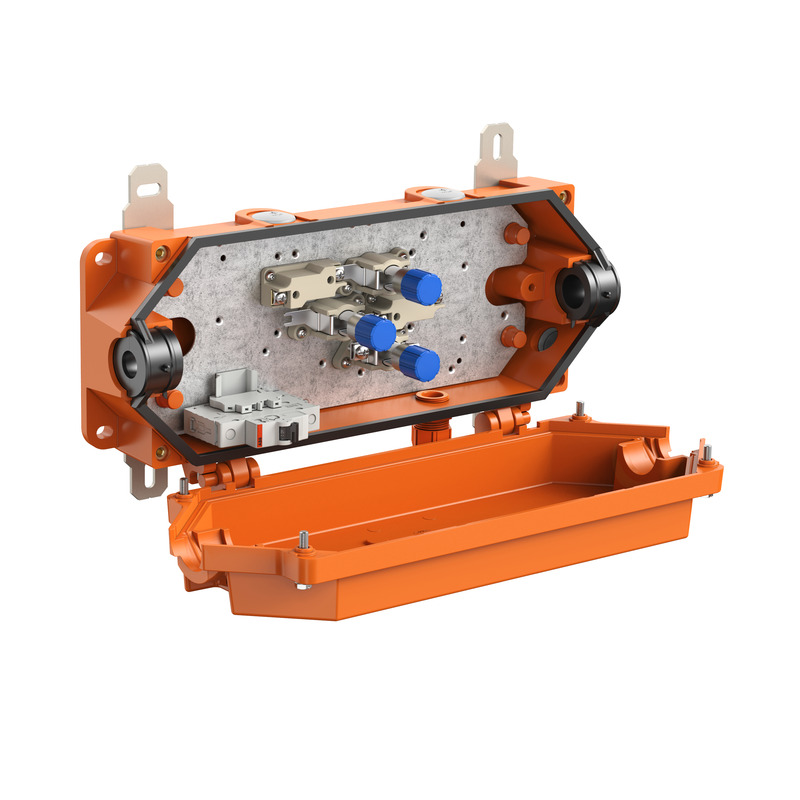

WKE Rapid-Box HT 1x3 16² 1F

Productnumber: 30232116 | Dimensions: 190 x 447 x 105 mm

Junction box, protection class IP66/IP67, U_i=400 V AC, M25, (5 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. For installations in the industrial environment and tunnel applications, pressure and suction tight in accordance with Gotthard guideline. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic. External fixing lugs and cover screws made of stainless steel 1.4571

orange, Feed-through: 3-pole terminal for uncut wires, clamping range for uncut wire 2.5mm² to 25mm², clamping range for cut wire 2.5mm² to 16mm², rated current 63A. Fuse and feedback-free junction 3-pole up to 2.5²mm, fuse protection with 1 x circuit breaker, unipolar B16, pre-wired, sealing range main cable: 17 - 22 mm (other sealing ranges on request)

Accessories supplied:
2 off M25 cable gland, sealing range 9-16mm
4 off M25 locking screws

Find wholesaler

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	400 V
max. wire cross section (wire branching)	2,5 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP66/IP67
Circuit integrity class	E30/E60/E90

Colours

Base unit colour	orange
Cover colour	orange

Dimensions

Width	190 mm
Length	447 mm
Height	105 mm
Inner length	350 mm
Inner width	145 mm
Inner height	95 mm
Weight	4.4 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Cover screw torque	6 Nm
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	100 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902651566
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Duroplast
Cover material	Duroplast
Sealing material	Silicone
Cover screw material	Stainless steel V4A
