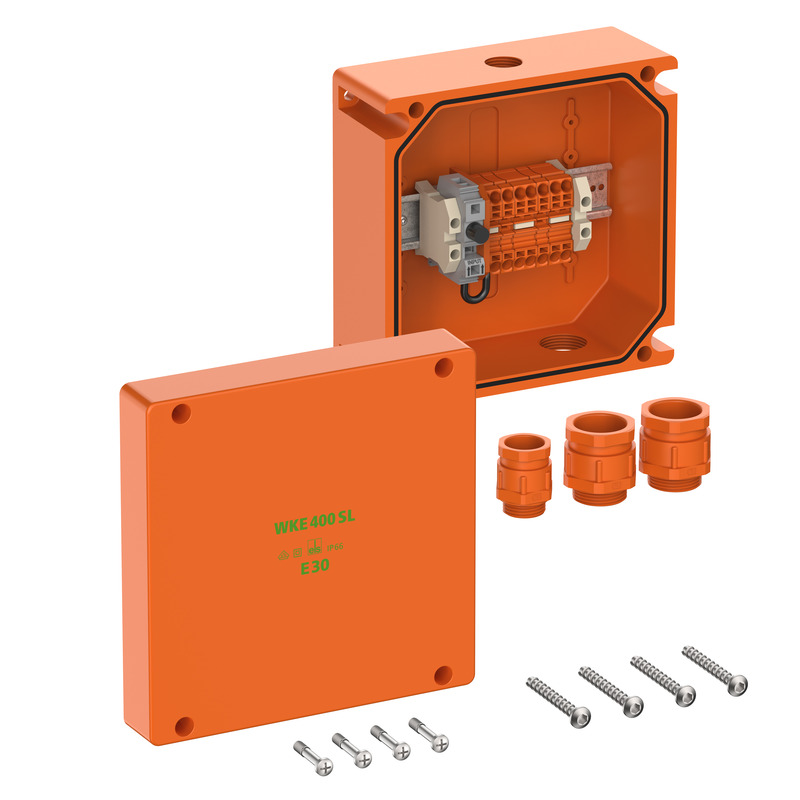

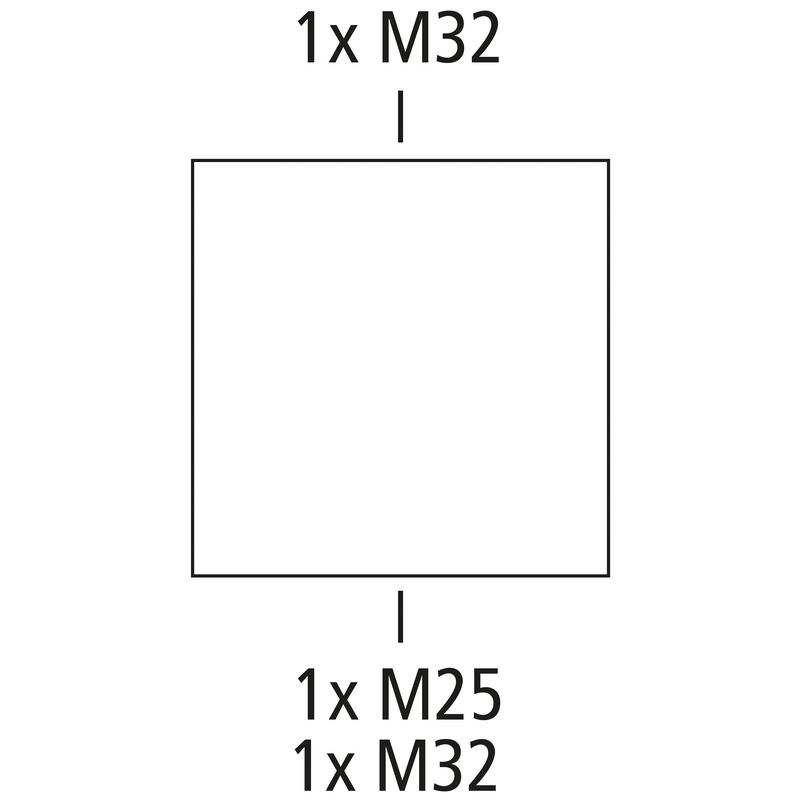

Junction box, protection class IP66, Ui=450 V AC, internal thread, M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, tested according to VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)) with screwless Wago TopJobS terminal blocks, enclosure made from halogen-free special thermosetting plastic
orange, Junction box with fused junction, connection box 5-pole, number of clampable wires per pole 2 x 0.5 - 16mm², junction box 3-pole, number of clampable wires per pole 4 x 0.5 - 6mm², clamping capacity per terminal point 1 x 0.5 - 6mm², 1 fuse holder (20 x 5mm) max. 10 A
Accessories supplied:
2 cable glands M32, sealing range 17 - 26 mm, 1 cable gland M25, sealing range 6 - 15 mm, dowel kit ø 6 mm
