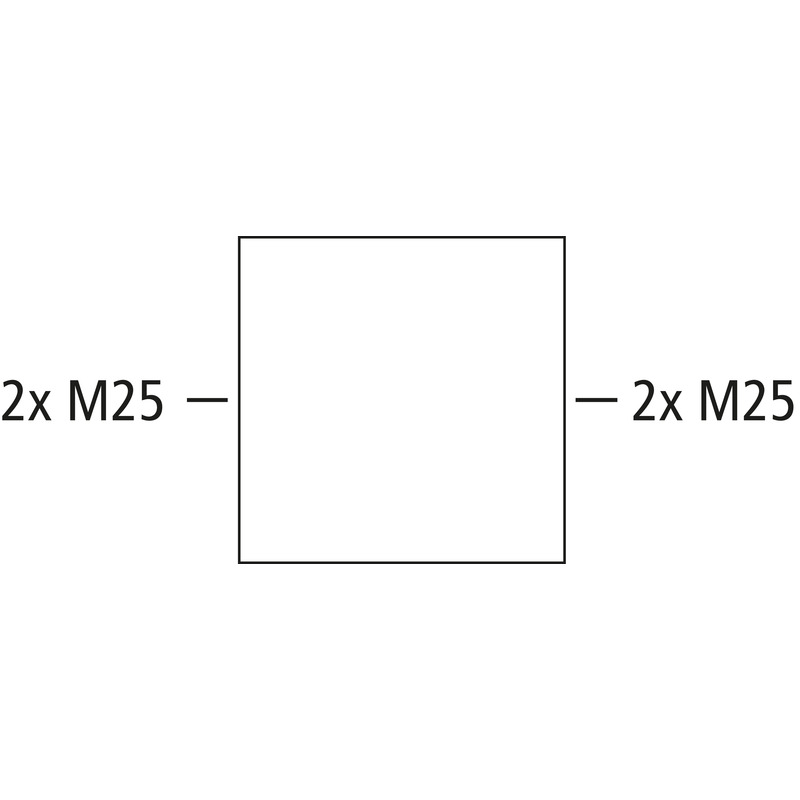

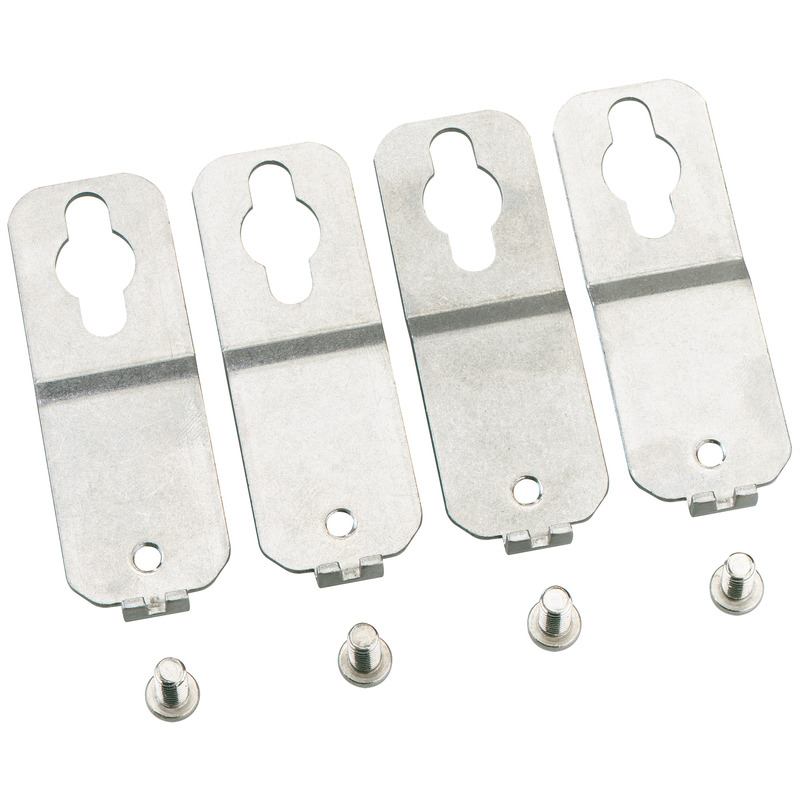

Junction box, protection class IP66, Ui=450 V AC, M25, (4 side), external fixing lugs, with time-saving connection technology (solder, screw and stripping-free) connection for cables with functional integrity according to DIN 4102 Part 12

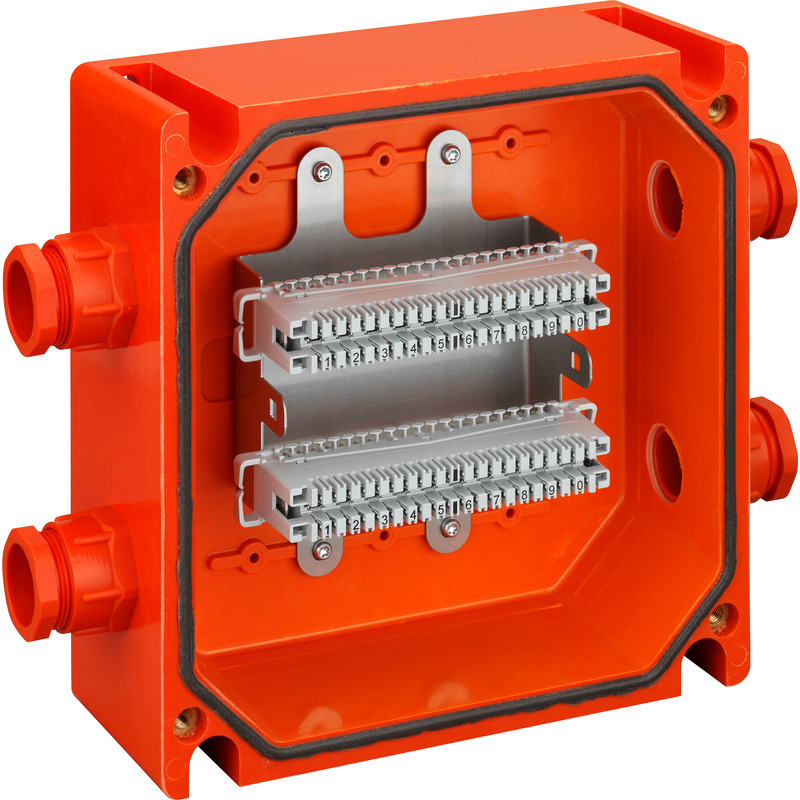

orange, Connection box equipped with two LSA-Plus connector blocks, respectively for 10 double wires (2 x 10 DA), the LSA-Plus contacts are suitable for a solid conductor with 0.4 to 0.8 mm diameter and an outside insulation diameter of 0.7 to 1.6 mm.
Accessories supplied:
4 off cable glands M25, sealing range 9 - 19 mm, wall plug set ø 6 mm
