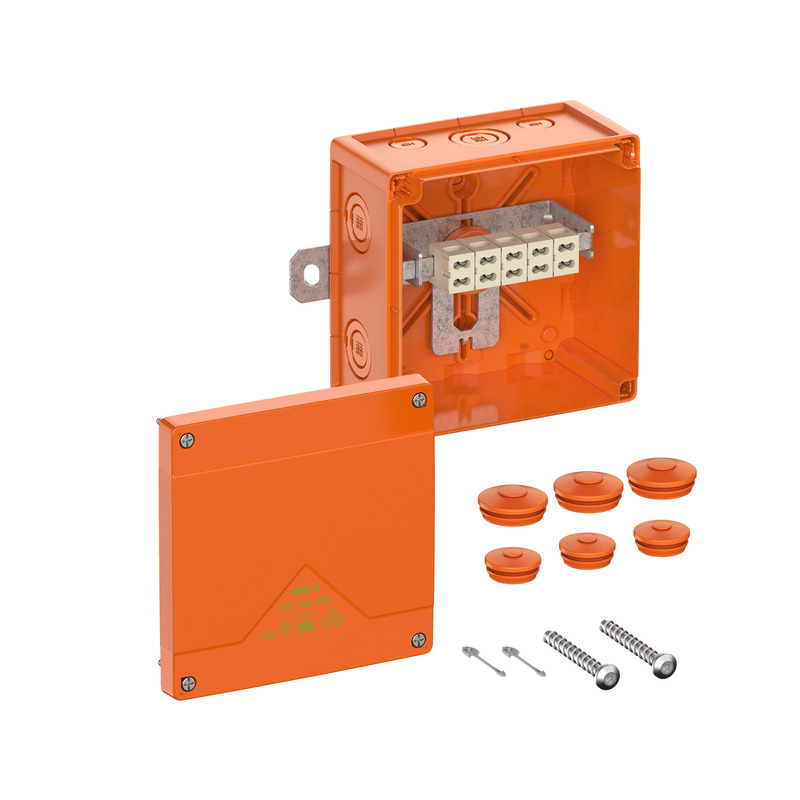

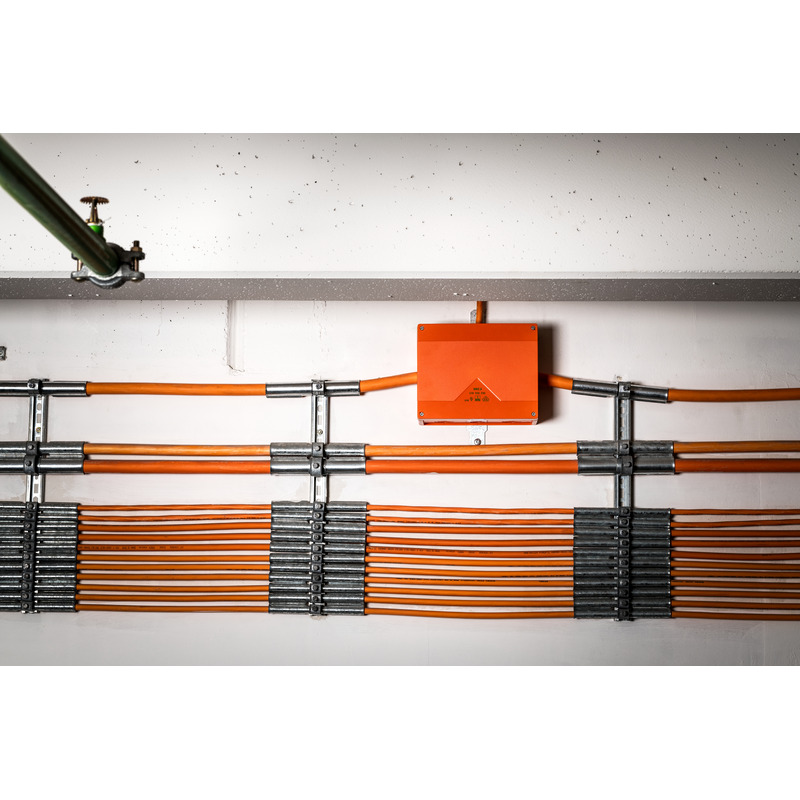

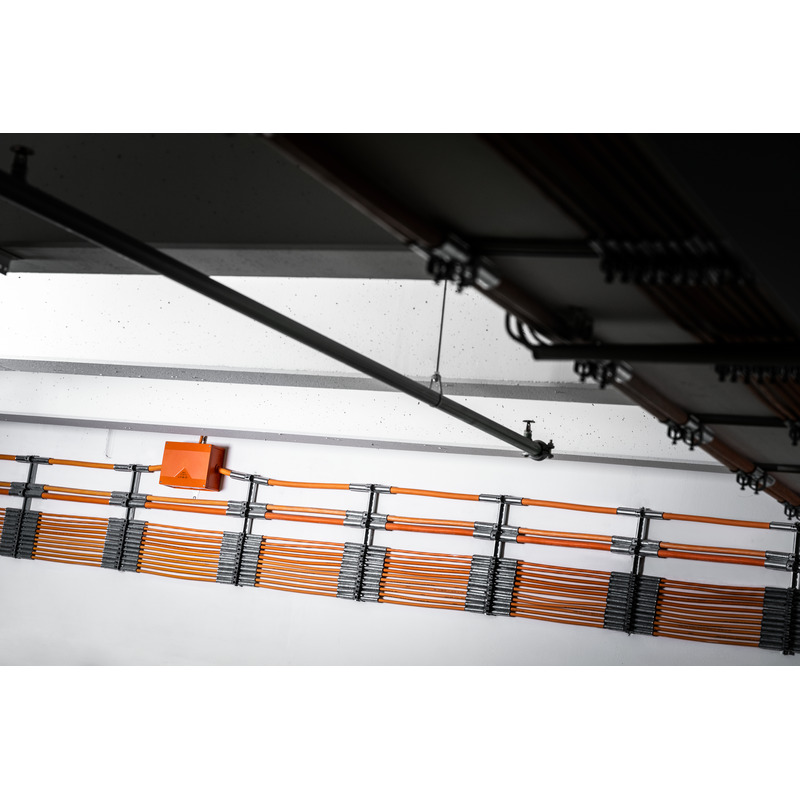

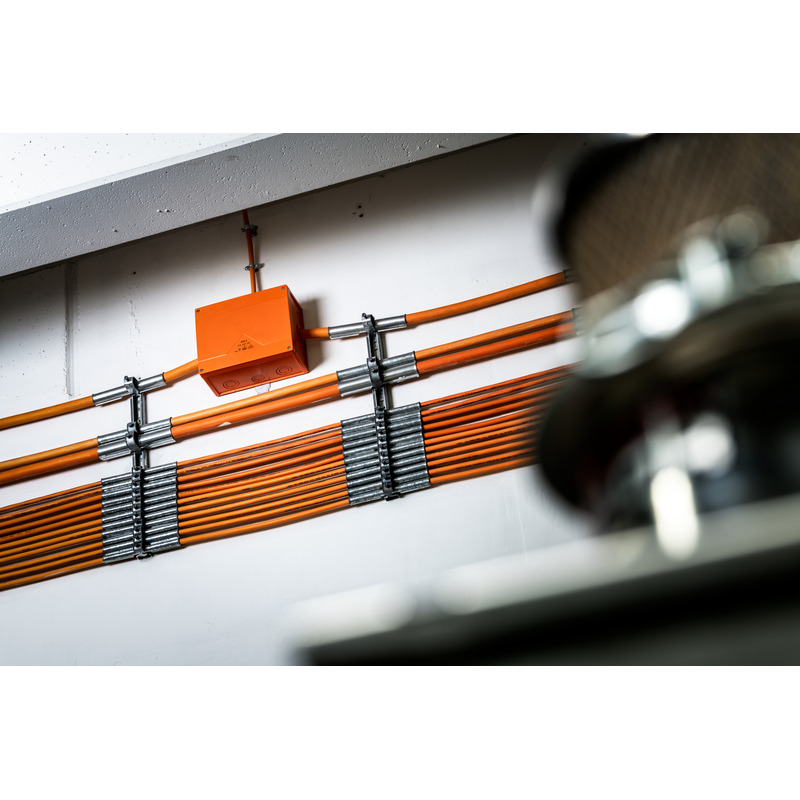

Junction box

WKE 4 - Duo 5 x 6²

Productnumber: 86741001 | Dimensions: 150 x 150 x 85 mm

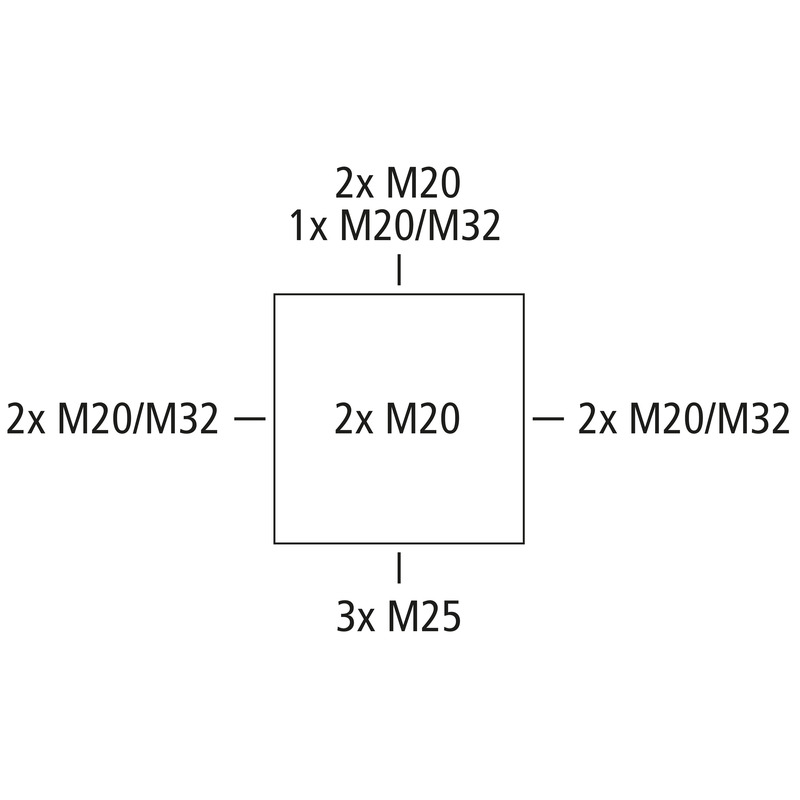

Junction box, protection class IP66, Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), knockouts, M20/M25/M32, (2 rear, 10 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder

orange, Connection box, 5-pole, 0.5 - 6 mm², junction box 5-pole 0.5 - 6 mm², number of clampable conductors per pole: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4² / 4 x 6²

Accessories supplied:
Cover retainer, screw anchors, 3 double membrane seals IP66 M25 sealing range 9 - 17 mm, 3 double membrane seals IP66 M32 sealing range 13 - 21 mm

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing pdf (1 MB)
Dimensional drawing dxf (12 MB)
Dimensional drawing dwg (2 MB)
Dimensional drawing jpg (1 MB)

Certificate

UKCA Declaration EN pdf (49 KB)
CE Declaration DE/EN/FR pdf (33 KB)
VDE Certificate DE/EN pdf (2 MB)
Certificate DE pdf (456 KB)
AbP Test certificate DE pdf (4 MB)
CE Declaration DE/EN/PL pdf (88 KB)
MPA Test certificate UKr pdf (1 MB)

Accessories

Double-membrane seals DMS M20/or

  • Dimensions : 25,2 x 25,2 x 13,4 mm
  • Productnumber: 26062001

Sealing range 7 - 13 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Double-membrane seals DMS M25/or

  • Dimensions : 29,7 x 29,7 x 13,6 mm
  • Productnumber: 26062501

Sealing range 9 - 17 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Double-membrane seals DMS M32/or

  • Dimensions : 36,7 x 36,7 x 14,7 mm
  • Productnumber: 26063201

Sealing range 13 - 21 mm



Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...



Cable gland KVR M20-MGM/or

  • Dimensions : 26,5 x 26,5 x 36 mm
  • Productnumber: 22762001

Sealing range 6 - 12 mm, Thread length 9 mm



Cable gland, IP68, with strain relief, polyamide, M_ x 1.5 mm, with locknut, orange



Cable gland KVR M25-MGM/or

  • Dimensions : 31,5 x 31,5 x 44 mm
  • Productnumber: 22762501

Sealing range 9 - 16 mm, Thread length 11 mm



Cable gland, IP68, with strain relief, polyamide, M_ x 1.5 mm, with locknut, orange



Cable gland KVR M32-MGM/or

  • Dimensions : 40 x 40 x 50 mm
  • Productnumber: 22763201

Sealing range 11 - 21 mm, Thread length 11 mm



Cable gland, IP68, with strain relief, polyamide, M_ x 1.5 mm, with locknut, orange



Mounting plate WKE BK 1

  • Dimensions : 100 x 70 x 246,5 mm
  • Productnumber: 86310001

Stainless steel without fixing screws



Assembly plate for fire-safe installation of cable junction boxes with functional integrity in...
