Junction box

WKE 2 - 5 x 1,5²

Productnumber: 86650201 | Dimensions: 100 x 100 x 70 mm

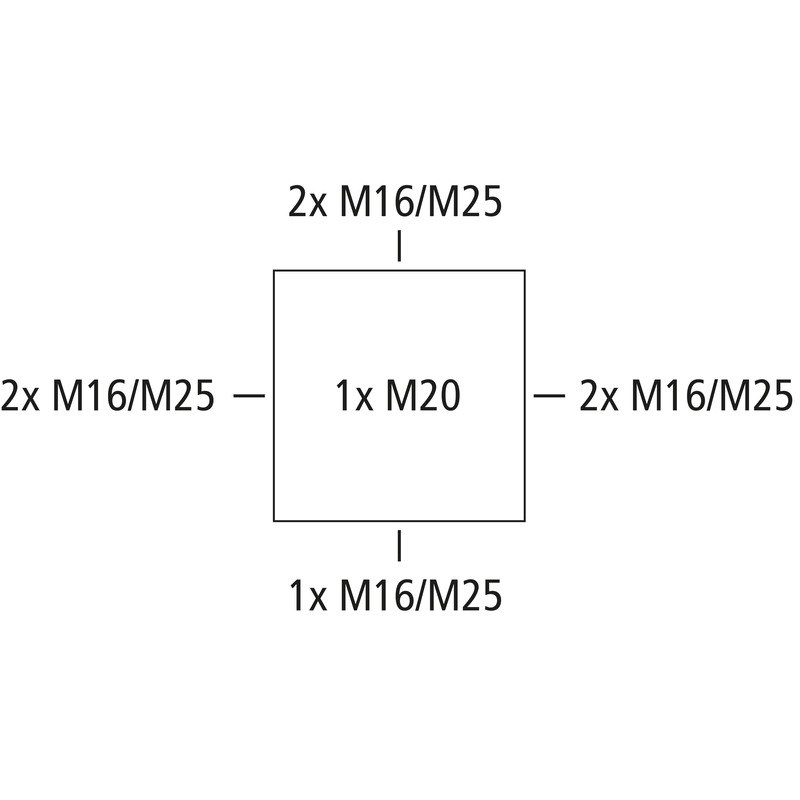

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), knockouts, M16/M25, (1 rear, 7 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder

orange, junction box, 5-pole, 0.5 - 4 mm², junction box 5-pole 0.5 - 1.5 mm², number of clampable wires per pole: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 4²

Accessories supplied:

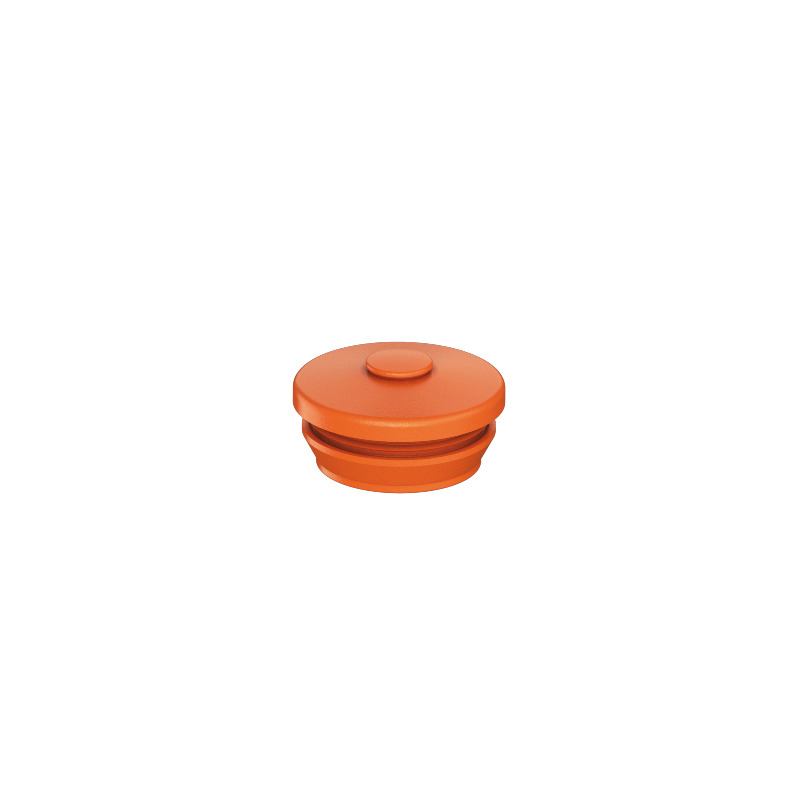

Cover retainer, screw anchors, 4 double membrane seals IP66 M25 sealing range 9 - 17 mm

Find wholesaler

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
max. wire cross section (wire branching)	1,5 mm²
Min. conductor cross section	0,5 mm²
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66
secured junction	no
Circuit integrity class	E30/E60/E90
Number of poles (T-piece)	5
Number of poles (feed-through)	5
UL Type Rating	other
Number of fuses in T-piece	0

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Connectors and T-pieces

Dimensions

Width	100 mm
Length	100 mm
Height	70 mm
Inner length	87 mm
Inner width	87 mm
Inner height	52 mm
Weight	0.43 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

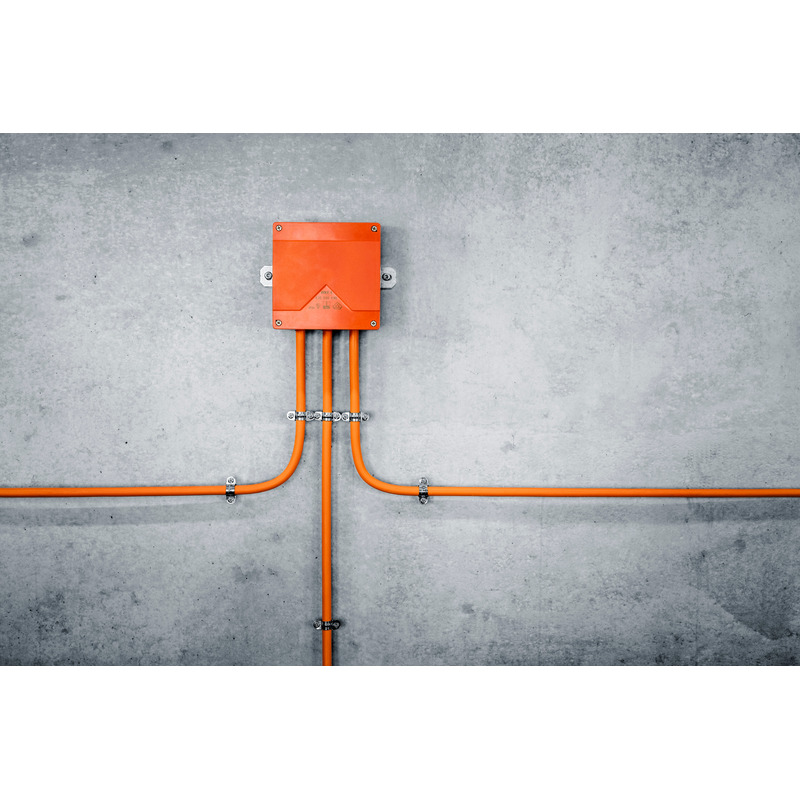

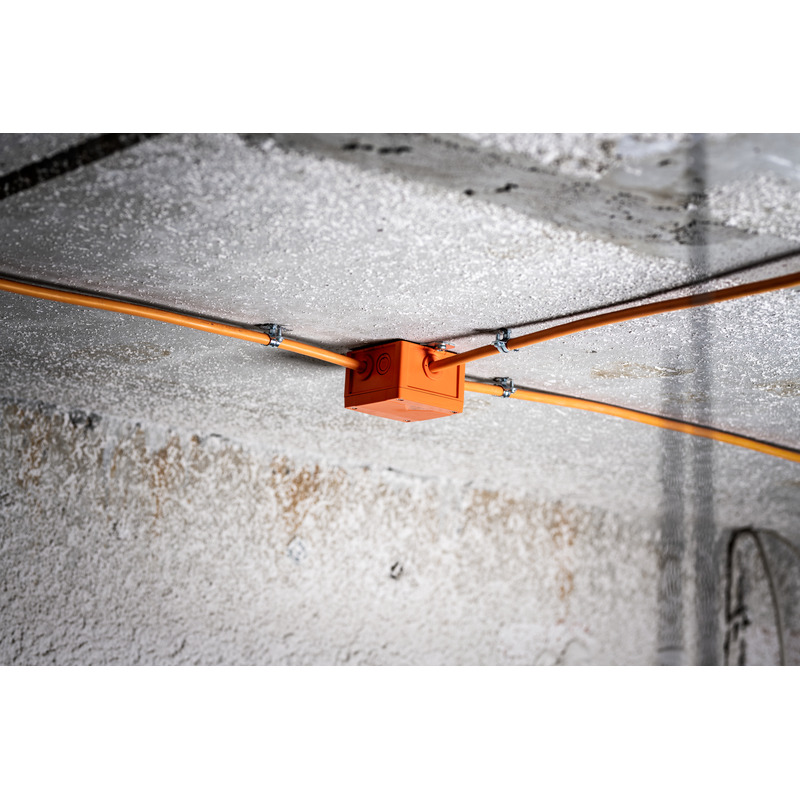

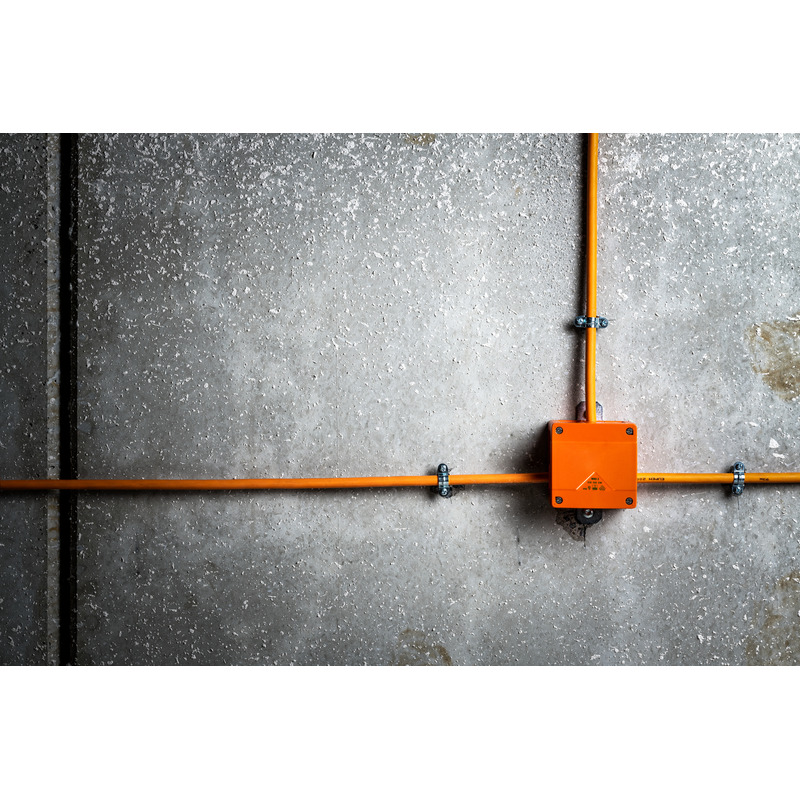

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902630974
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	UL-EU (EN 62208)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction	pdf (10 MB)

Dimensioned drawing

Dimensional drawing	dwg (2 MB)
Dimensional drawing	jpg (1 MB)
Dimensional drawing	pdf (907 KB)
Dimensional drawing	dxf (10 MB)

Certificate

Certificate DE	pdf (456 KB)
MPA Test certificate UKr	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (33 KB)
VDE Certificate DE/EN	pdf (2 MB)
AbP Test certificate DE	pdf (4 MB)
CE Declaration DE/EN/PL	pdf (88 KB)
UKCA Declaration EN	pdf (49 KB)
