E-Bike charging station
Productnumber: 20013401 | Dimensions: 202 x 152 x 110 mm
E-Bike charging station, protection class IP44, black, incl. cover screw with special head, cable entries, 1 x M25 rear housing side, 1 x M25 lower housing side, 1 x ventilation seal M20, pre-wired to terminal Wago 221 (L1/L2/L3/N/PE)

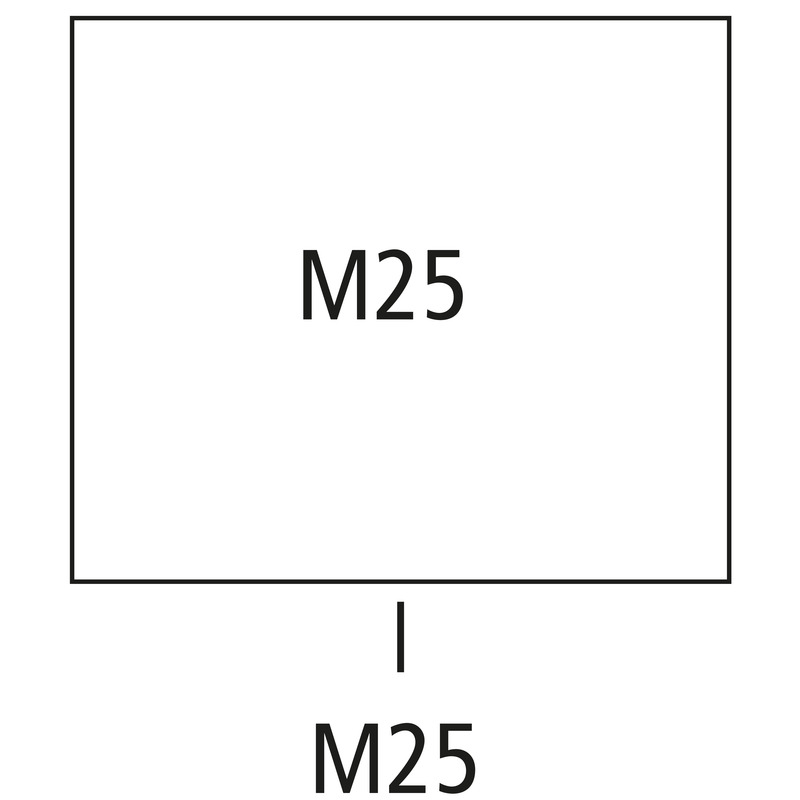

Cable insertions:
Bottom: DMS 1 x M25
Rear: DMS 1 x M25
with LED lighting
equipped with:
| Protective contact socket, French/Belgian standard (on front), 230V | 3 |
|---|
| Rated insulation voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP44 |
| Number of rows | 0 |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 202 mm |
|---|---|
| Length | 152 mm |
| Height | 110 mm |
| Inner length | 195 mm |
| Inner width | 145 mm |
| Inner height | 76 mm |
| Weight | 0.8089 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 750 °C |
| Type of fastening | Wall mounting |
|---|---|
| Impact strength | IK08 |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902611768 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002883 |
| Custom tariff number | 85369095 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel V2A |
