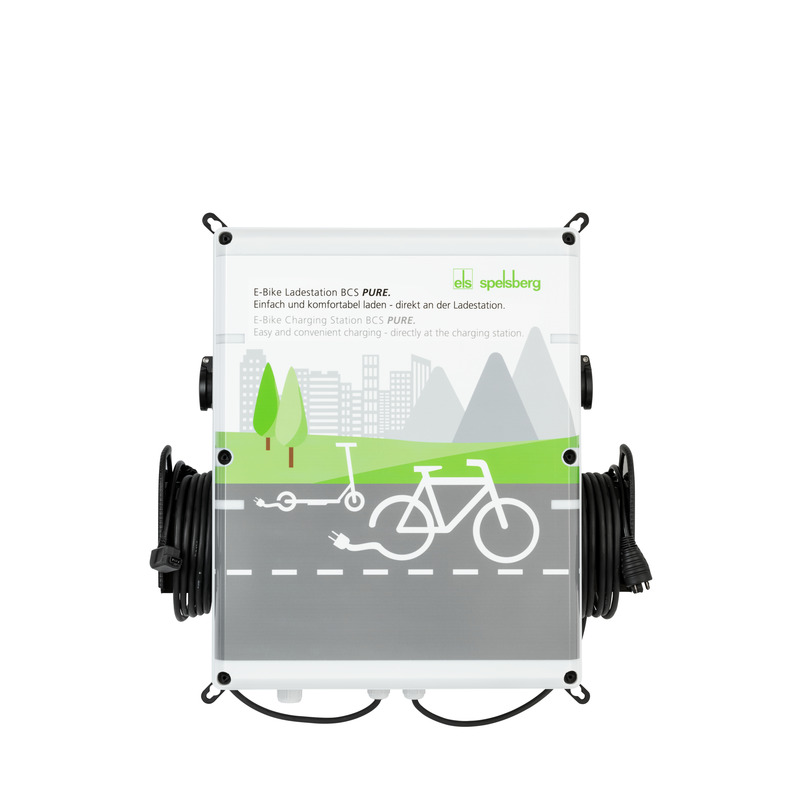

E-Bike charging station

BCS Pure BE

Productnumber: 57513201 | Dimensions: 528 x 530 x 226 mm

e-bike charging station, monitored and controlled charging for the e-biker and charging station operator, grey, similar to RAL 7035, with printed cover, fixed cable system, including status display of individual charging points, can be connected to 230/400V-grid, product delivered ready for connection for rapid and easy wall-mounting

four charging points, of which 2 sockets Type E 230V, 2 x Bosch

Accessories supplied:

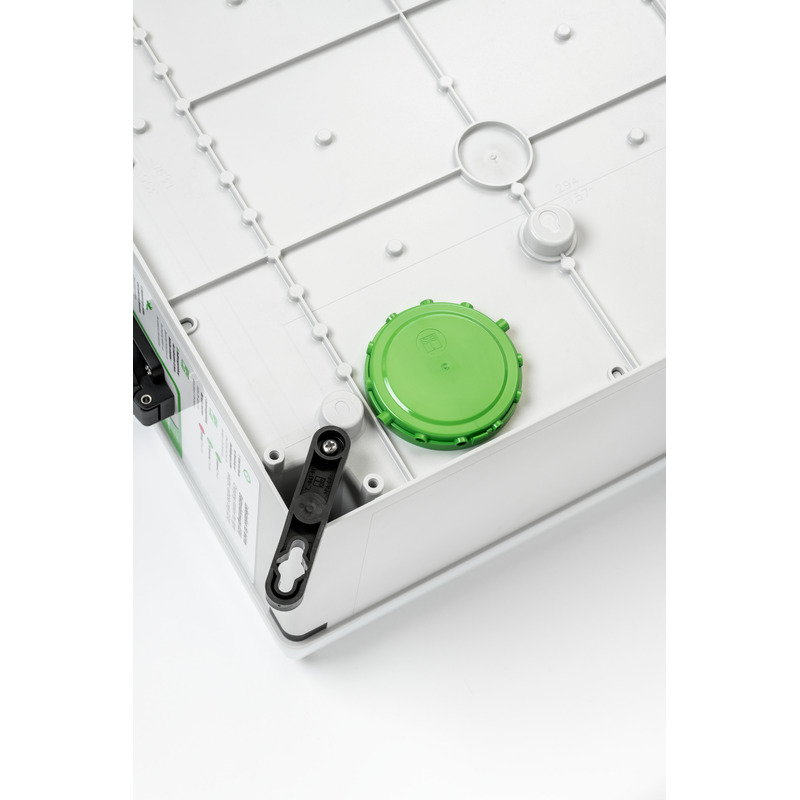

With four external fixing lugs 10mm and 40mm wall distance, with integrated ventilation element BEL Air M40 for preventing the accumulation of condensation inside the enclosure

Built-in devices

Bosch charging point 1

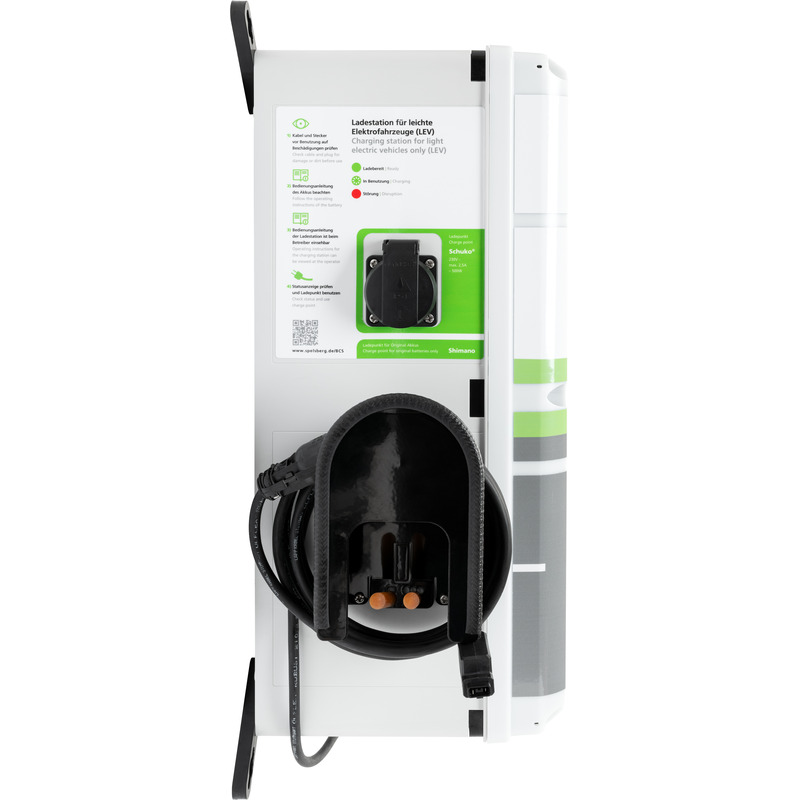

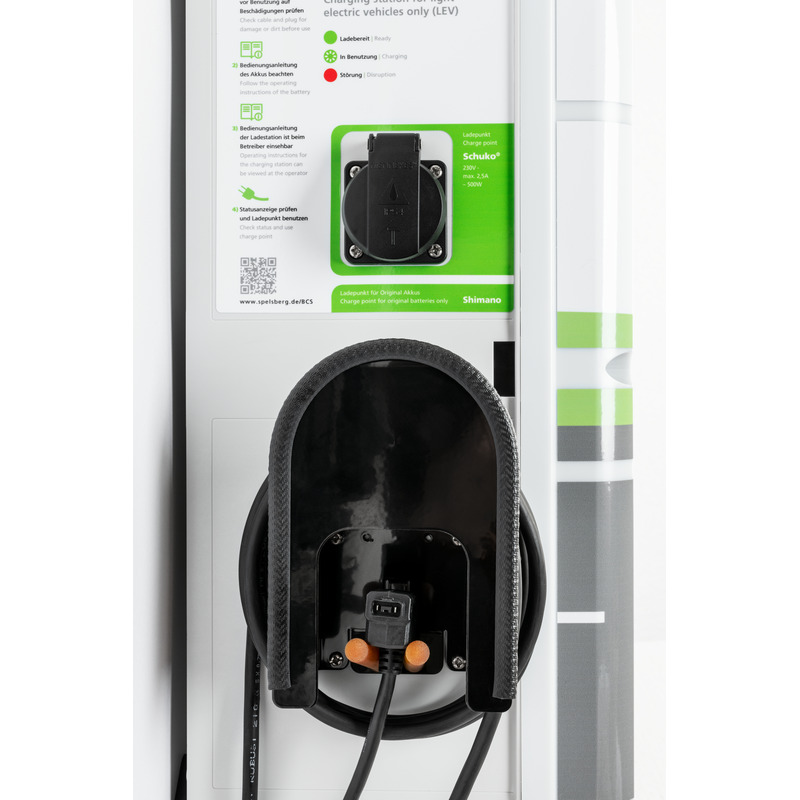

Shimano charging point 1
SCHUKO® plug socket (on side), 230V 2

electrical characteristics

Rated operating voltage AC 230 V
Rated operating voltage DC 50 V
Min. conductor cross section 1,5 mm²
Max. conductor cross section 4 mm²
Protection class II
Type of protection IP54
vented yes

Colours

Base unit colour grey
Cover colour White translucent

Additional features

Management portal No
Inlet for data cable No

Dimensions

Width 528 mm
Length 530 mm
Height 226 mm
Weight 0 kg

Material characteristics

UV-resistant yes
Halogen free yes

mechanical properties

Type of fastening Wall mounting
Impact strength IK08
Sealable yes
Type of top part Cover

Ambient conditions

max. relative humidity 25°C 80 %
max. relative humidity 40°C 75 %

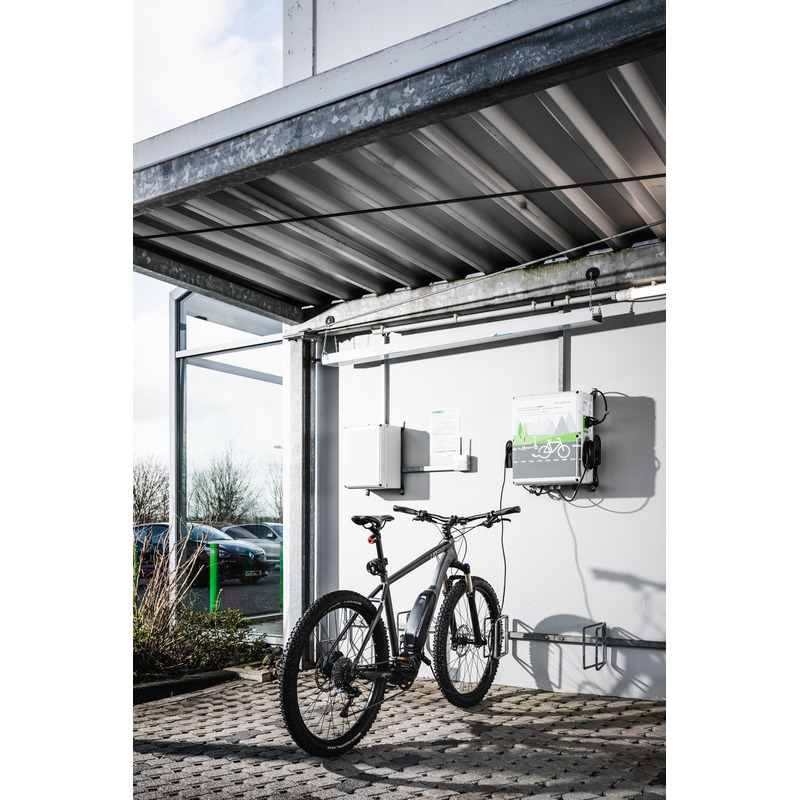

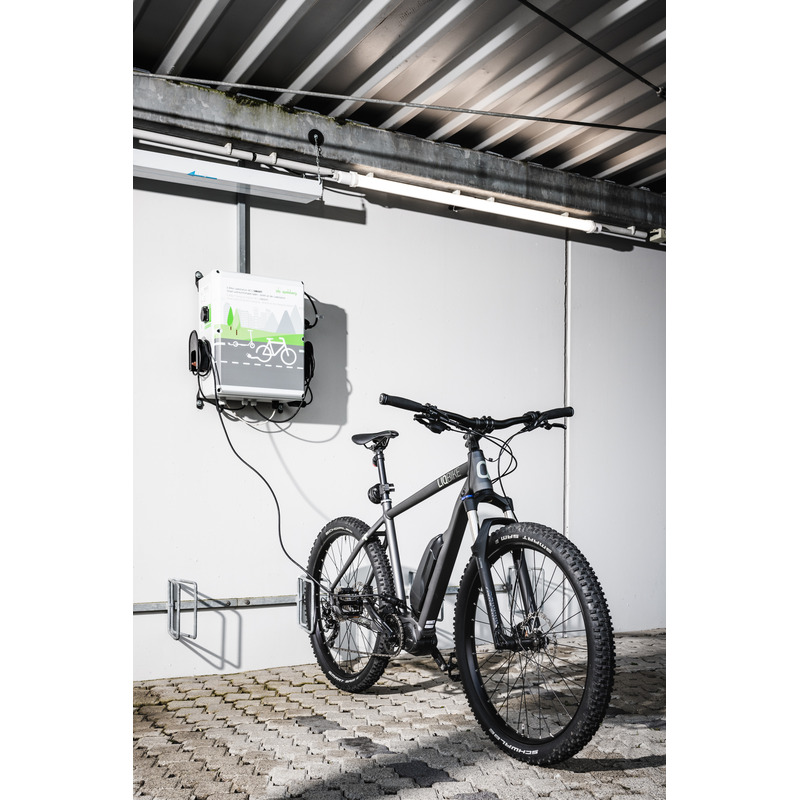

Installation location protected outdoor areas

Sales Information

ETIM Class EC002883
Custom tariff number 85371098

Material

Base unit material Polycarbonate, glass-fibre reinforced
Cover material Polycarbonate
Entry material Polyamide
Sealing material Silicone
Cover screw material Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN/ES pdf (5 MB)
Product manual DE/EN pdf (2 MB)
Product manual FR/NL pdf (5 MB)

Installation instructions

Assembly instruction DE/EN pdf (4 MB)
Assembly instruction EN/ES pdf (8 MB)
Assembly instruction FR/NL pdf (5 MB)

Dimensioned drawing

Dimensional drawing pdf (583 KB)
Dimensional drawing dwg (1 MB)
Dimensional drawing dxf (7 MB)
Dimensional drawing jpg (903 KB)

Certificate

CE Declaration DE/EN/FR pdf (61 KB)
