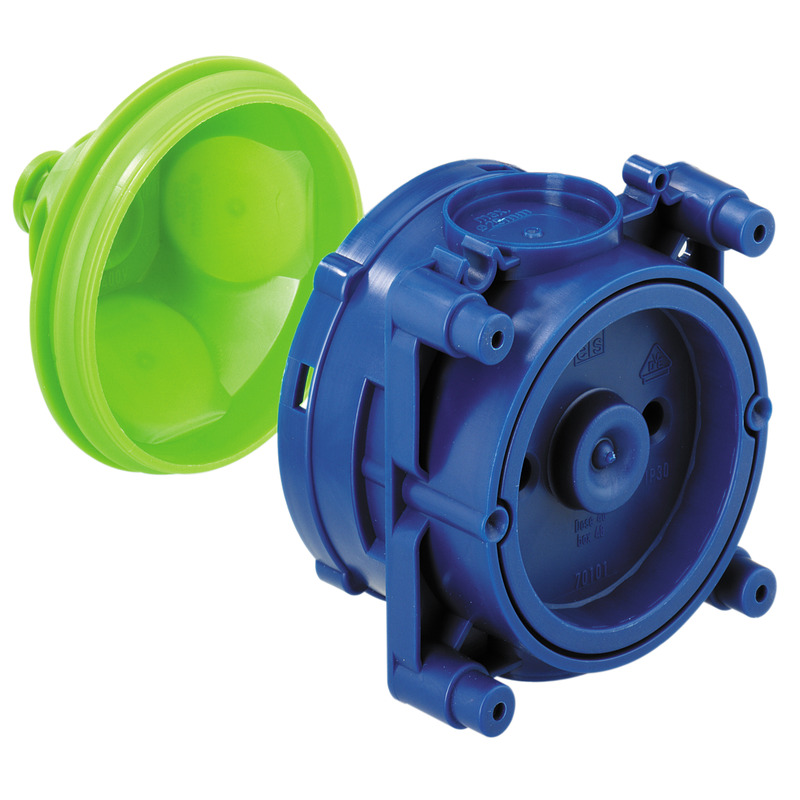

Dome funnel
Productnumber: 97074801 | Dimensions: 71 x 71 x 62 mm

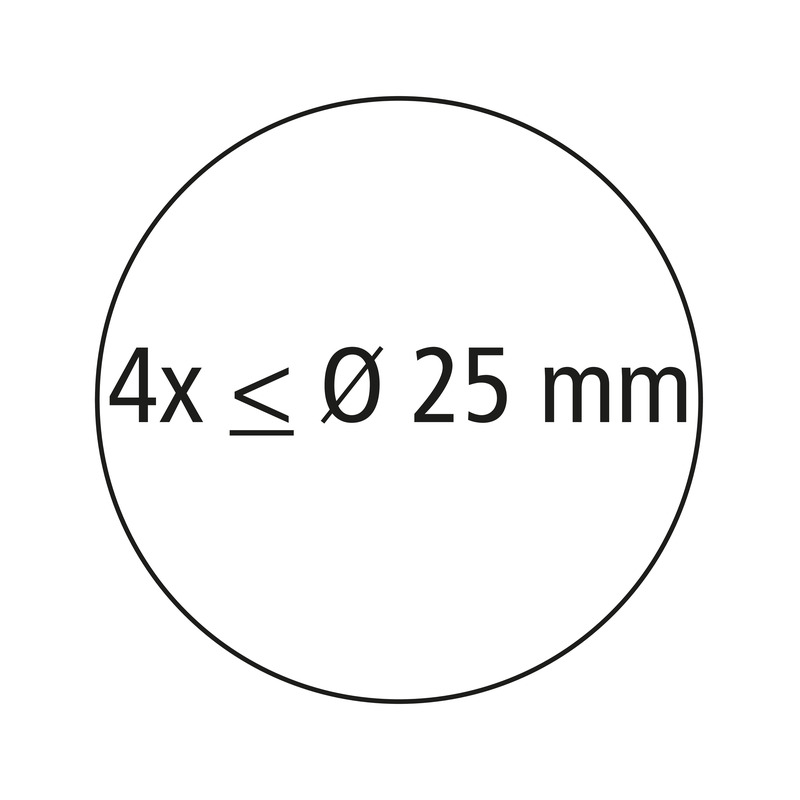

Dome funnel, as a ceiling outlet for internal partition or as luminaire outlet, combinable with normal 71 mm spacing, with smooth face, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, Halogen free, Number of 45° insertions: 4
adhesive fixing or nail installation, sealing range M16 - M25
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 62 mm |
| Weight | 0.0365 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | adhesive fixing or nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| ETIM Class | EC002328 |
|---|---|
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
