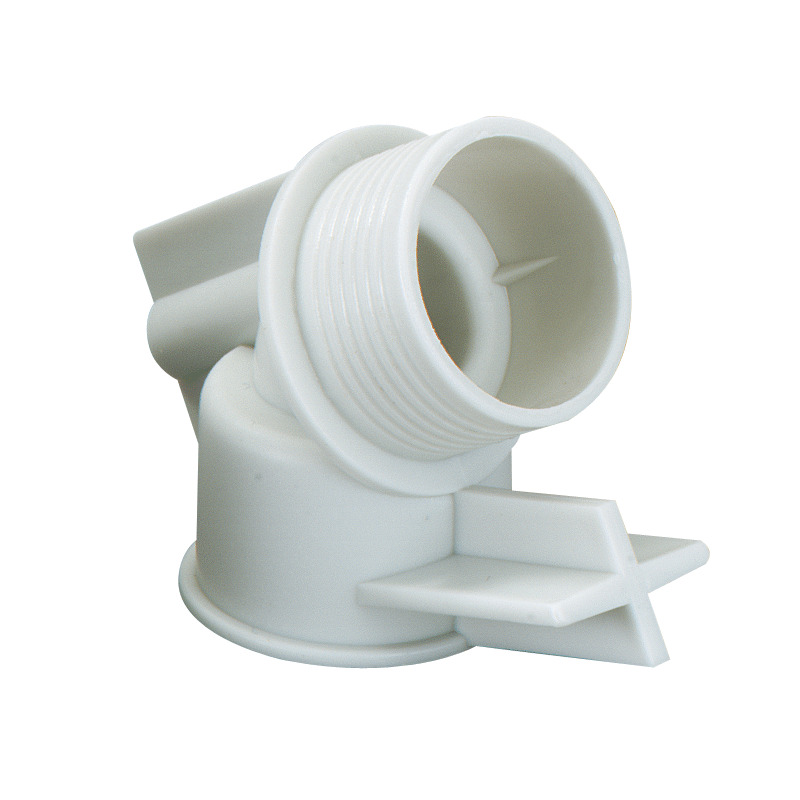

Conduit elbow
Productnumber: 97042501 | Dimensions: 33 x 52,5 x 54 mm
Conduit elbow, rated insulation voltage: 400V AC, Halogen free, Number of 30° insertions: 1
for 30° insertion to insert into conduit ferrule (small) 97051801, M20, sealing range M20
| Rated insulation voltage AC | 400 V |
|---|---|
| Suitable for | Concrete construction |
| Width | 33 mm |
|---|---|
| Length | 52.5 mm |
| Height | 54 mm |
| Weight | 0.001 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902180073 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002328 |
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
