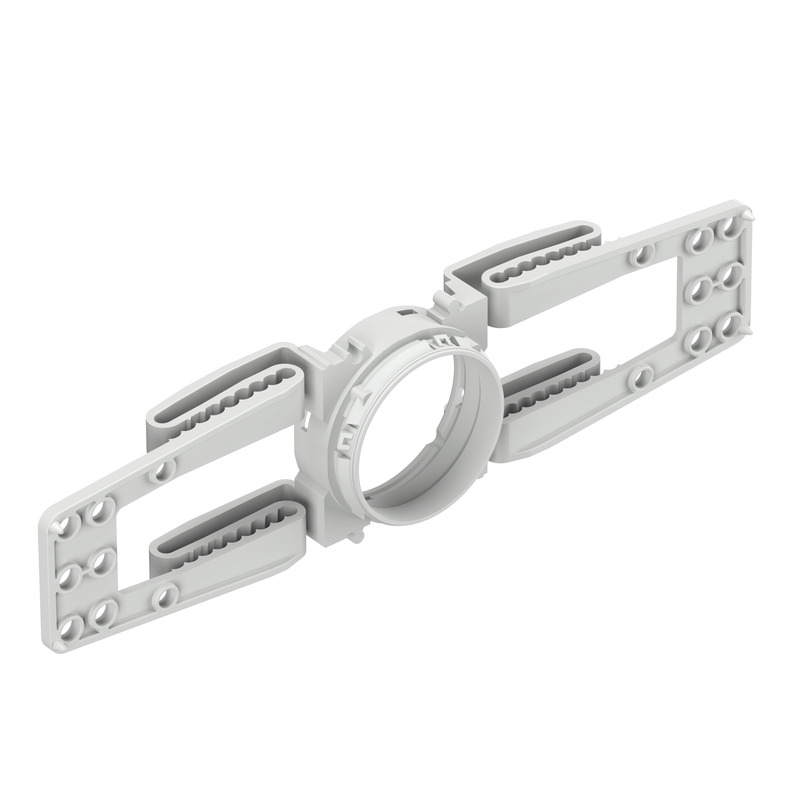

Reinforcement adapter

IBT BWA

Productnumber: 97933001 | Dimensions: 76 x 300 x 35 mm

Reinforcement adapter, suitable for taking all U71 sockets (except for Perilex), combinable with a standard spacing of 71 mm, face concrete for opposing formwork without support with preinstallation in the reinforcement for concrete construction, Halogen free

installation at reinforcement via reinforcement adapter

electrical characteristics

Suitable for Concrete construction

Colours

Cover colour grey

Dimensions

Width 76 mm
Length 300 mm
Height 35 mm
Weight 0.0658 kg

Material characteristics

Halogen free yes
Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 650 °C

mechanical properties

Type of fastening installation at reinforcement via reinforcement adapter

Ambient conditions

max. relative humidity 25°C - %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C

Sales Information

EAN 4013902456192
Packing Unit Code C62
ETIM Class EC002328
Custom tariff number 39269097

Material

Base unit material Polypropylene
