U 120 GRO-3 U 120 GRO-3

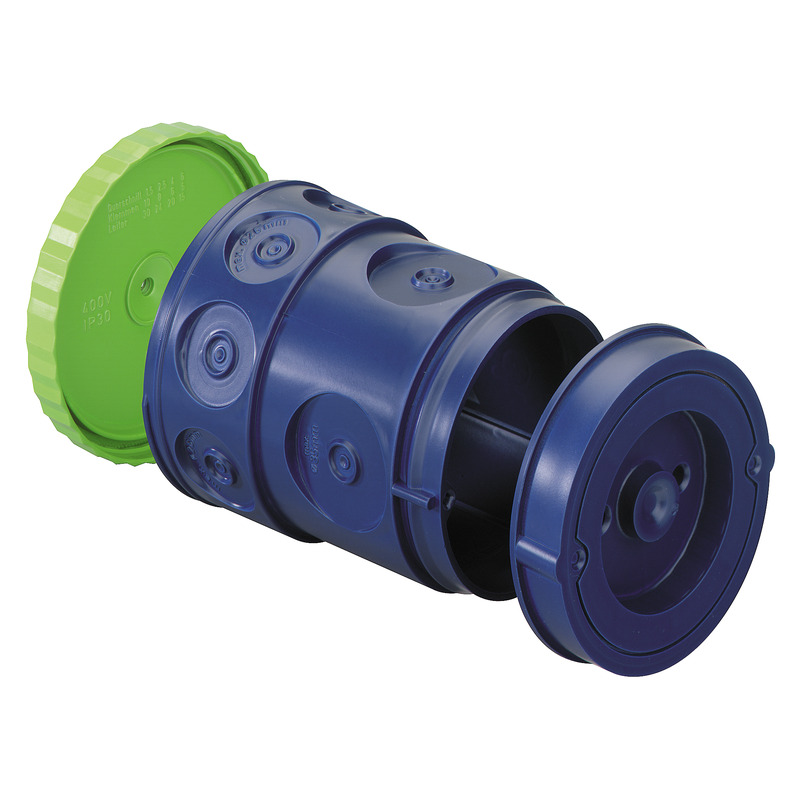

Large conduit box

U 120 GRO-3

Productnumber: 97331201 | Dimensions: 74 x 74 x 122 mm

Large conduit box , for ceiling slab thickness up to 6.5 cm, with M5 threaded bushing (load capacity 10 kg) to hold ceiling hook, lamp output Halogen max. 6.5 W, lamp output LED max. 3 WThe use of U120 as a luminaire installation enclosure in large components such as element slabs or filigree slabs does not comply with the accredited state-of-the-art. Basically the admissible installation tolerances there do not allow for precise installation, protection class IP30, rated insulation voltage: 400V AC, Halogen free

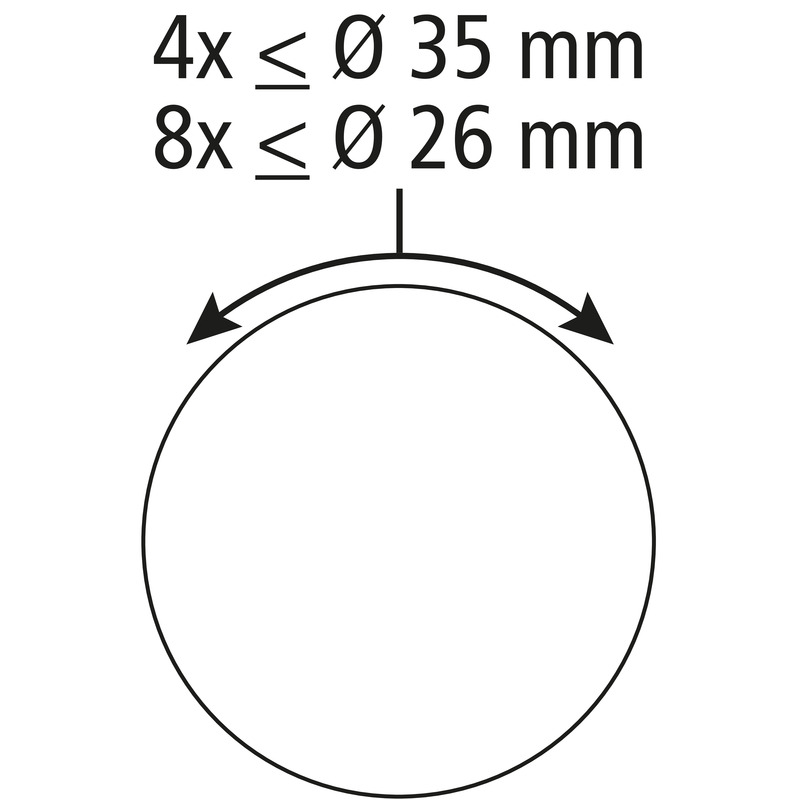

magnet and nail installation, membrane for perforation, sealing range M16 - M32

  • Find wholesaler

electrical characteristics

Rated insulation voltage AC 400 V
Type of protection IP30
Suitable for Concrete construction
UL Type Rating not specified

Colours

Cover colour other

Dimensions

Width 74 mm
Length 74 mm
Height 122 mm
Weight 0.082 kg

Material characteristics

Halogen free yes
Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 650 °C

mechanical properties

Type of fastening magnet and nail installation

Ambient conditions

max. relative humidity 25°C - %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C

Sales Information

EAN 4013902190102
Packing Unit Code C62
ETIM Class EC002601
Custom tariff number 39269097

Material

Base unit material Polypropylene
Cover material Polypropylene

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing dxf (1 MB)
Dimensional drawing dwg (89 KB)
Dimensional drawing jpg (1 MB)
Dimensional drawing pdf (113 KB)

Certificate

CE Declaration DE/EN/FR pdf (63 KB)
CE Declaration DE/EN/PL pdf (75 KB)
UKCA Declaration EN pdf (50 KB)

Accessories

IBT Accessories - HFL

IBT Accessories HFL

  • Dimensions : 50 x 50 x 9,5 mm
  • Productnumber: 97925001

support flange 50 mm Ø, plastic



Fixings for plastic/steel formwork



Watchlist
Details
IBT Accessories - HM-UNI

IBT Accessories HM-UNI

  • Dimensions : 50 x 50 x 10 mm
  • Productnumber: 97929901

magnetic clamps, 50 mm Ø, extra strong, pull-off strength 300 +/- 20...



Fixings for steel formwork



Watchlist
Details
sealing plate - VD 75

sealing plate VD 75

  • Dimensions : 75 x 75 x 4,75 mm
  • Productnumber: 97910001

with fixing screws



Sealing plate for junction boxes, flame resistant, white



Watchlist
Details
ceiling hook - DH 115-M5

ceiling hook DH 115-M5

  • Dimensions : 27,4 x 143 x 27,4 mm
  • Productnumber: 97912101

115 mm



Metal ceiling hook, insulated, with M5 thread for ceiling boxes



Watchlist
Details
sealing plate - HW VD-67

sealing plate HW VD-67

  • Dimensions : 90 x 90 x 2 mm
  • Productnumber: 92510001

for type HW 070, screw spacing 67 mm



Sealing plate for junction boxes, polystyrene, flame resistant, white



Watchlist
Details
Stepped drill - LFR

Stepped drill LFR

  • Productnumber: 19599501

through opening: M16-32, drill hole: 16.5-32.5 mm



Hole cutter



Watchlist
Details
This article is archived!
Conduit coupling - RVB 20

Conduit coupling RVB 20

  • Productnumber: 97022001

for long-ridged pipes M20



Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...



Watchlist
Details
Conduit coupling - RVB 25

Conduit coupling RVB 25

  • Productnumber: 97022501

for long-ridged pipes M25



Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...



Watchlist
Details
This article is archived!
Conduit coupling - RVB 32

Conduit coupling RVB 32

  • Productnumber: 97023201

for long-ridged pipes M32



Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...



Watchlist
Details
This article is archived!
Conduit coupling - RVB 40

Conduit coupling RVB 40

  • Productnumber: 97024001

for long-ridged pipes M40



Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...



Watchlist
Details
This article is archived!
Hole punch - IBT LZA-OE

Hole punch IBT LZA-OE

  • Dimensions : 235 x 35 x 63 mm
  • Productnumber: 97810001

without punch set



Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...



Watchlist
Details
This article is archived!
Hole punch - IBT LZA-18

Hole punch IBT LZA-18

  • Productnumber: 97811801

with 18 mm punch set for pipe M20



Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...



Watchlist
Details
This article is archived!
Hole punch - IBT LZA-23

Hole punch IBT LZA-23

  • Productnumber: 97812301

with 23 mm punch set for pipe M25



Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...



Watchlist
Details
This article is archived!
Punch set - IBT STE-LZA/14

Punch set IBT STE-LZA/14

  • Productnumber: 97891401



Punch sets as replacements or where expansion is required for IBT LZA hand hole punch



Watchlist
Details
This article is archived!
Punch set - IBT STE-LZA/18

Punch set IBT STE-LZA/18

  • Productnumber: 97891801



Punch sets as replacements or where expansion is required for IBT LZA hand hole punch



Watchlist
Details
This article is archived!
Punch set - IBT STE-LZA/23

Punch set IBT STE-LZA/23

  • Productnumber: 97892301



Punch sets as replacements or where expansion is required for IBT LZA hand hole punch



Watchlist
Details
This article is archived!
Installation screw - ES-10

Installation screw ES-10

  • Dimensions : 5,5 x 13 x 5,5 mm
  • Productnumber: 97910501

3.1 x 10 mm



Additional device screws for mounting built-in devices in cavity wall outlet sockets



Watchlist
Details
This article is archived!
Installation screw - ES-18

Installation screw ES-18

  • Dimensions : 5,5 x 21 x 5,5 mm
  • Productnumber: 97910601

3.1 x 18 mm



Additional device screws for mounting built-in devices in cavity wall outlet sockets



Watchlist
Details
This article is archived!
Installation screw - ES-25

Installation screw ES-25

  • Dimensions : 5,5 x 28 x 5,5 mm
  • Productnumber: 97910701

3.1 x 25 mm



Additional device screws for mounting built-in devices in cavity wall outlet sockets



Watchlist
Details
This article is archived!
Expansion mandrel - WED

Expansion mandrel WED

  • Dimensions : 28,5 x 131,15 x 28,5 mm
  • Productnumber: 97915501

expansion range 9 - 25 mm Ø



Expansion mandrel, assembly tool when inserting conduit



Watchlist
Details
IBT Accessories - NAS-AL

IBT Accessories NAS-AL

  • Dimensions : 8,4 x 30 x 8,4 mm
  • Productnumber: 97924001

spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...



Fixings for steel formwork



Watchlist
Details
IBT Accessories - NA-AL

IBT Accessories NA-AL

  • Dimensions : 3,5 x 40 x 3,5 mm
  • Productnumber: 97924201

aluminium nail, 40 mm, long-ridged



Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...



Watchlist
Details
IBT Accessories - NA-AL/gl

IBT Accessories NA-AL/gl

  • Dimensions : 3,1 x 45 x 3,1 mm
  • Productnumber: 97924301

aluminium nail, 40 mm, smooth



Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...



Watchlist
Details
This article is archived!
IBT Accessories - ANSW

IBT Accessories ANSW

  • Productnumber: 97926001

weld on screw M6 x 10 mm, price economic, secure fixing of the box,...



Fixings for steel formwork



Watchlist
Details

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

BIM-Data

BIM-Data Download 3D-BIM-Data

Your request

Your information
Companydata
BIM-Format

Tender text

Similar products

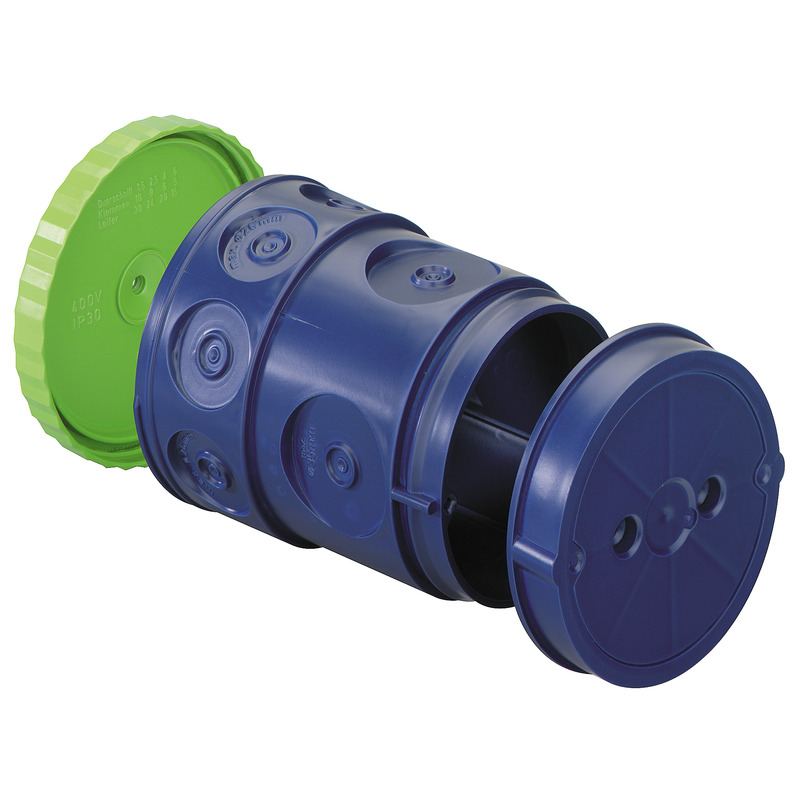

Large conduit box - U 120 K GRO-3

Large conduit box U 120 K GRO-3

  • Dimensions : 74 x 74 x 122 mm
  • Productnumber: 97371301

adhesive fixing or nail installation, membrane for perforation,...



Large conduit box , for ceiling slab thickness up to 6.5 cm, with M5 threaded bushing (load capacity...



Watchlist
Details

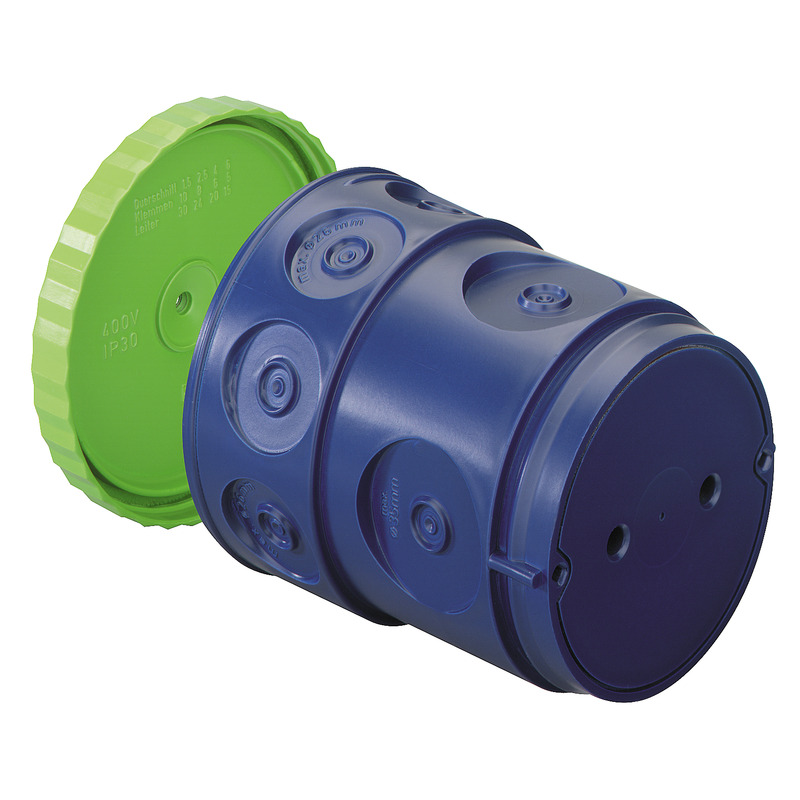

Large conduit box - U 120 K GRO-2
