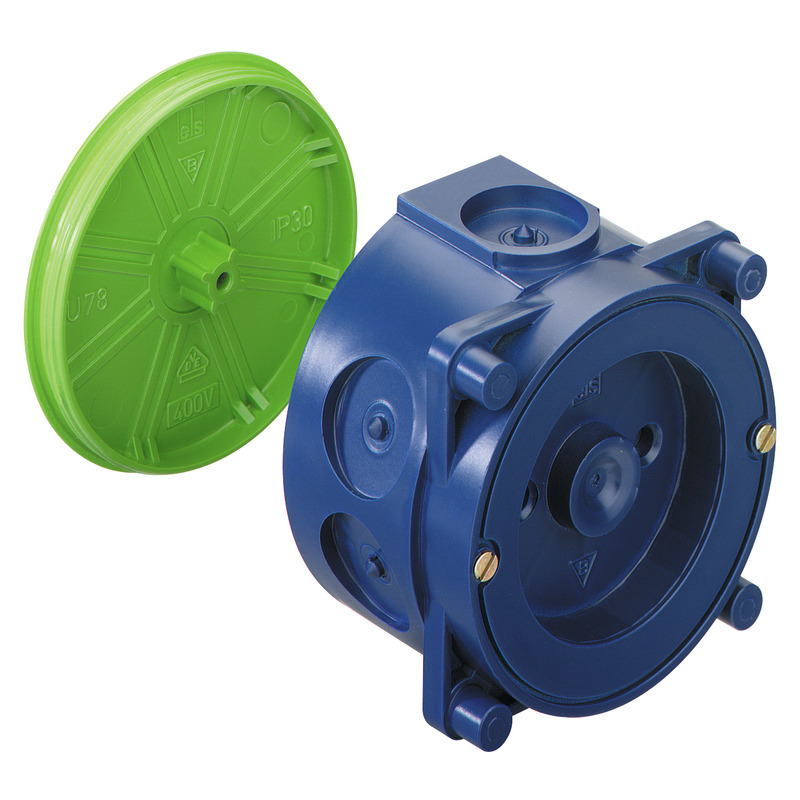

Receptacle
Productnumber: 97305001 | Dimensions: 71 x 71 x 50 mm
Receptacle, 67 mm screw spacing, for Perilex® inserts 16 A, FR-UP equipment, CEE sockets, 5-pole 16 A, protection class IP30, rated insulation voltage: 400V AC, Halogen free
2-part, magnet and nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 50 mm |
| Weight | 0.045 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | magnet and nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902190089 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
