Receptacle

U 71 K GRD

Productnumber: 97174501 | Dimensions: 71 x 71 x 50 mm

Receptacle, 2 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

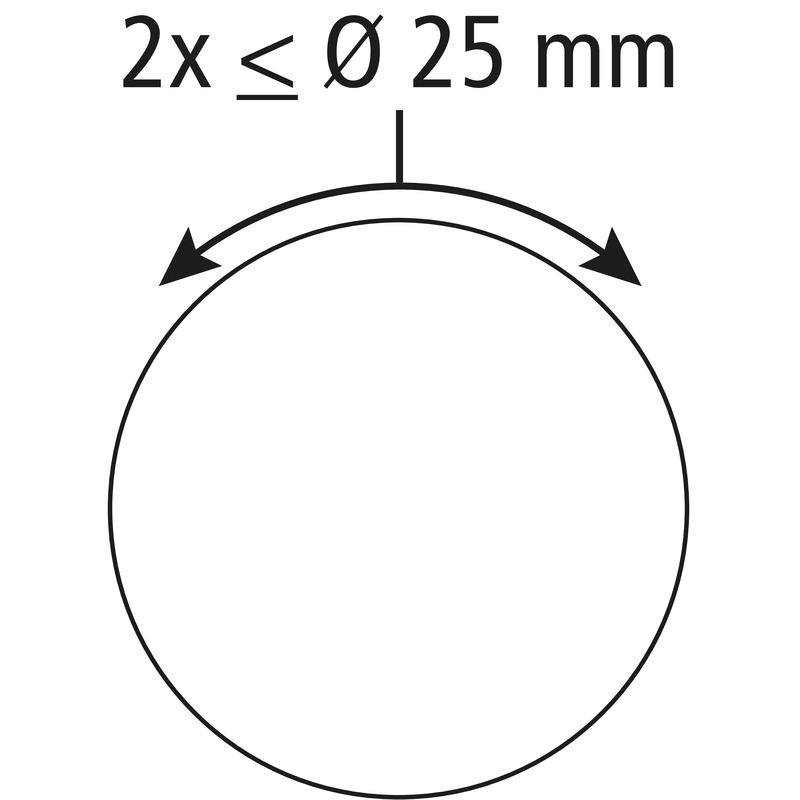

2-part, adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible

Find wholesaler

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	50 mm
Weight	0.04 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902855773
Packing Unit Code	C62
ETIM Class	EC002601
Custom tariff number	39269097

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (108 KB)
Dimensional drawing	dxf (2 MB)
Dimensional drawing	dwg (364 KB)
Dimensional drawing	jpg (915 KB)

Certificate

CE Declaration DE/EN/PL	pdf (75 KB)
CE Declaration DE/EN/FR	pdf (63 KB)
VDE Certificate DE/EN	pdf (942 KB)
UKCA Declaration EN	pdf (50 KB)

Accessories

This article is archived!

IBT Accessories KR

Productnumber: 97924801

adhesive black, as a non-damaging fixing, when using blank and flange,...

Fixings for plastic/steel formwork
