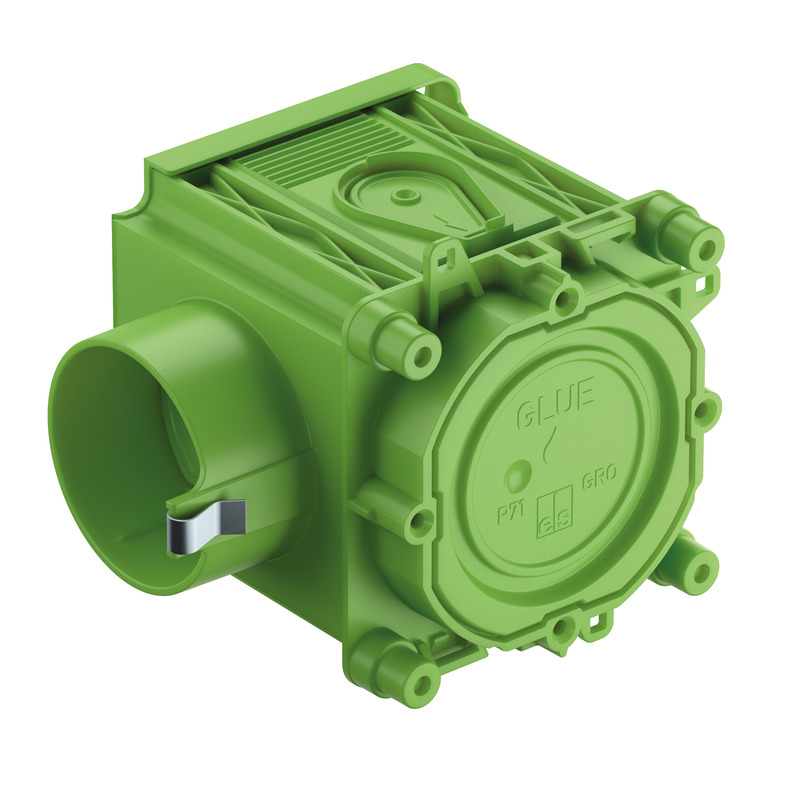

Large conduit box
Productnumber: 98477501 | Dimensions: 71 x 71 x 76,5 mm
Large conduit box , especially for horizontal factory finishing, 1-part, diameter 60 mm Ø, 4 screw bosses with a 60 mm screw spacing, combinable, suitable for opposing formwork, combinable with a standard spacing of 71 mm, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

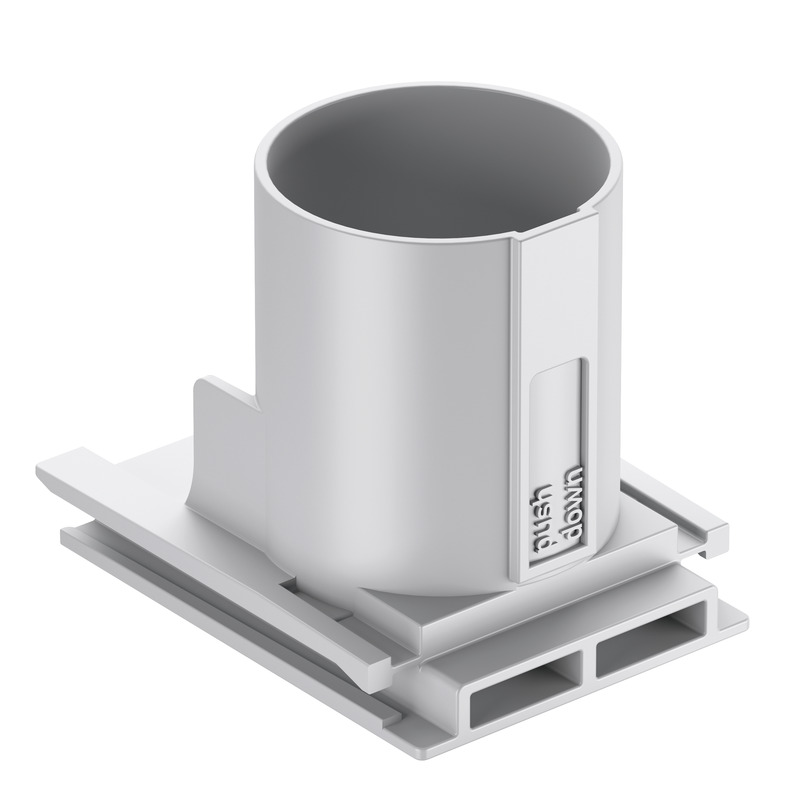

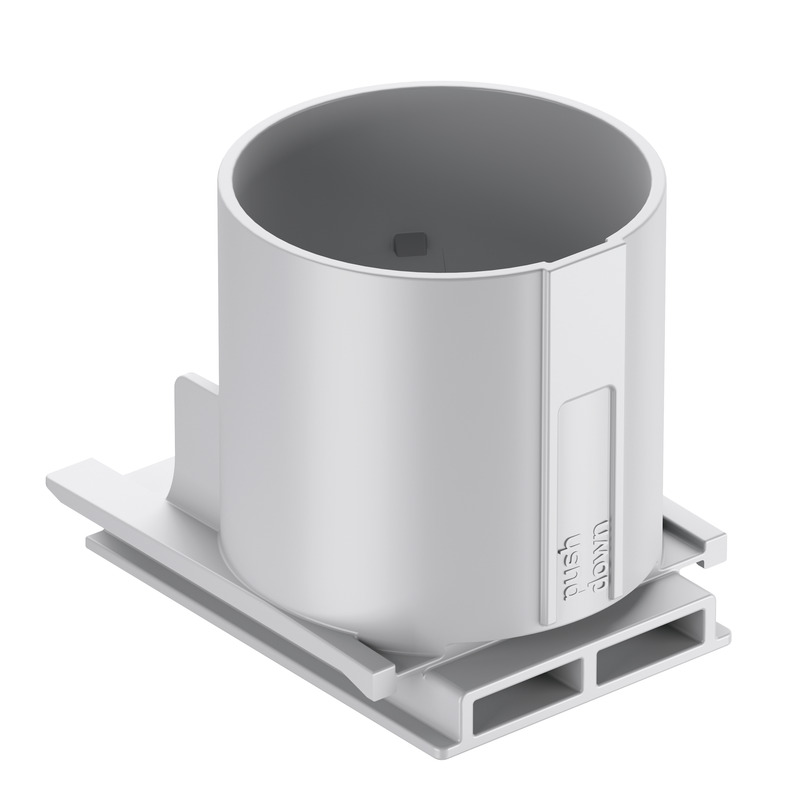

with enlarged terminal compartment, adhesive fixing, conduit adapter and additional conduit adapter with Easy-Cut-Membran, sealing range M32 - M40
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 76.5 mm |
| Inner height | 72.9 mm |
| Weight | 0.059 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | adhesive fixing |
|---|
| max. relative humidity 40°C | 50 % |
|---|---|
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902597536 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| Assembly instruction FR | pdf (914 KB) |
|---|---|
| Assembly instruction EN | pdf (914 KB) |
| Assembly instruction DE | pdf (913 KB) |
| Assembly instruction ES | pdf (914 KB) |
| Assembly instruction NL | pdf (913 KB) |
