Thread bottom

GWB

Productnumber: 97911001 | Dimensions: 70,7 x 70,7 x 23,5 mm

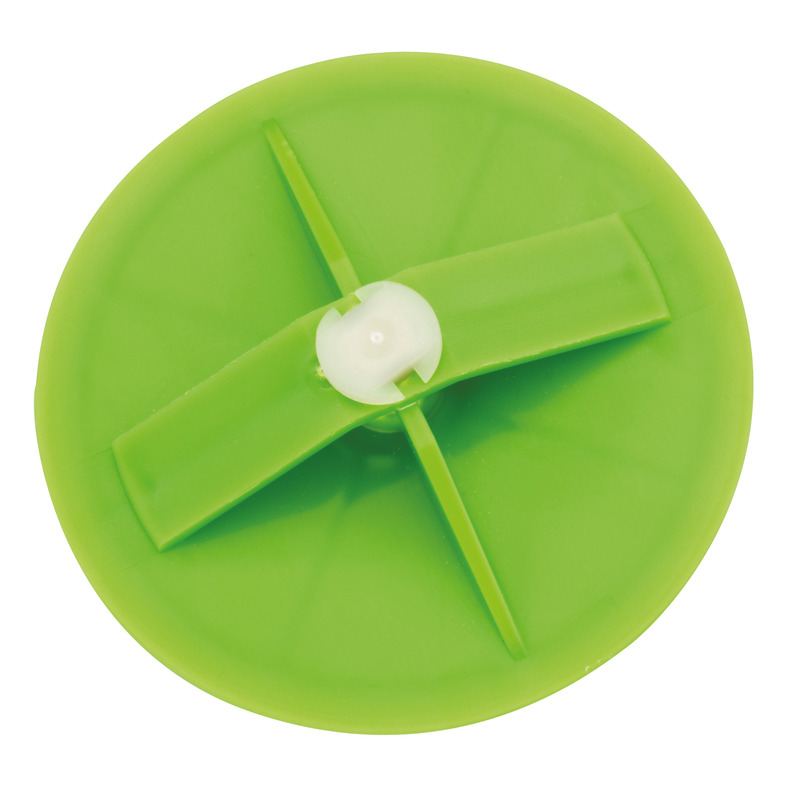

Threaded base M5

with M5 threaded bushing to take a ceiling hook, converts every U71 junction box to a ceiling socket

Dimensions

Width 70.7 mm
Length 70.7 mm
Height 23.5 mm
Weight 0.01 kg

Material characteristics

Flammability class according with UL94 HB
Glow-wire flammability according to EN 60695-2-11 650 °C

mechanical properties

Type of accessory other

Sales Information

EAN 4013902210206
Packing Unit Code C62
ETIM Class EC002328
Custom tariff number 39269097

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing pdf (49 KB)
Dimensional drawing dxf (288 KB)
Dimensional drawing dwg (76 KB)
Dimensional drawing jpg (671 KB)

Tender text
