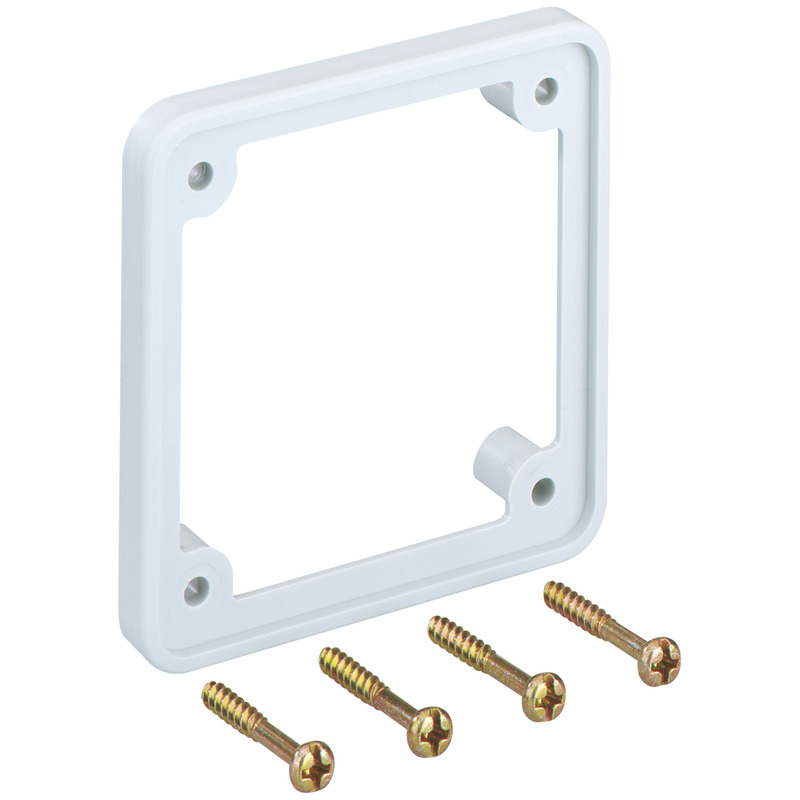

Installation kit
Productnumber: 37210001 | Dimensions: 71 x 142 x 59 mm
Installation kit for CEE devices 16 A (straight design) with flange dimensions 75 x 75 mm, spacing of the fixing holes 60 mm, suitable for individual boxes
Check dimensions beforehand owing to large number of CEE devices available on the market.
| Width | 71 mm |
|---|---|
| Length | 142 mm |
| Height | 59 mm |
| Weight | 0.0226 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of accessory | other |
|---|
| Installation location | Indoors |
|---|
| EAN | 4013902030132 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002498 |
| Custom tariff number | 39269097 |
