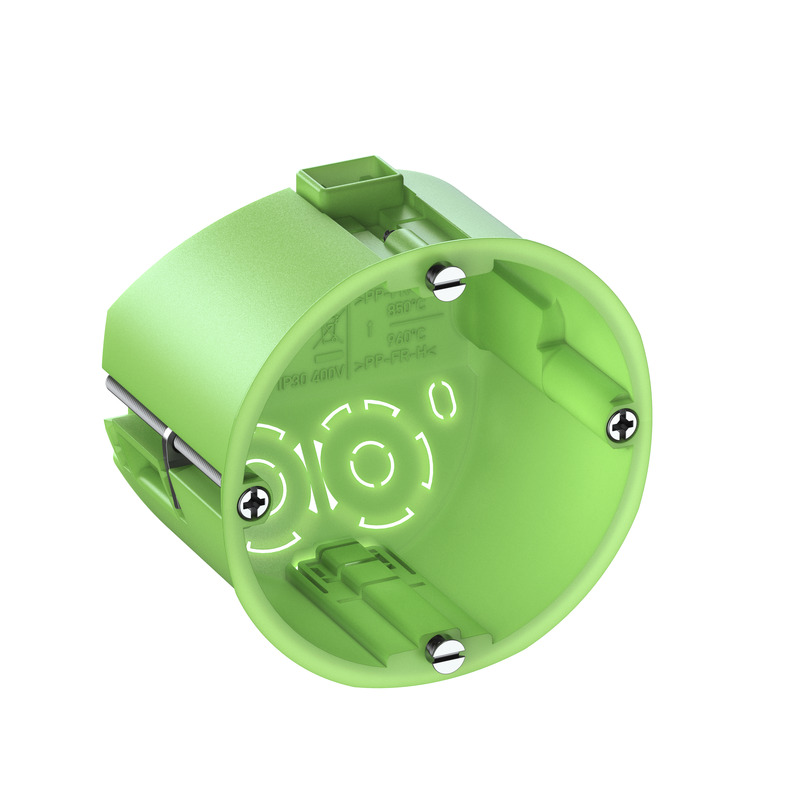

Receptacle
Productnumber: 92005001 | Dimensions: 68 x 68 x 50 mm
Cavity wall receptacle, flame resistant, universal socket for plate thicknesses from 1 to 40 mm with moulded patented combi jumpers and punching tool, device screw spacing 60 mm
drilled hole Ø 68 mm, 50 mm deep, with coated, patented combi bridges
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Width | 68 mm |
|---|---|
| Length | 68 mm |
| Height | 50 mm |
| Inner height | 48 mm |
| Weight | 0.025 kg |
| Halogen free | no |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 850 °C |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902170517 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
