Fastening parts kit
Productnumber: 89600901 | Dimensions: 17 x 30 x 14 mm

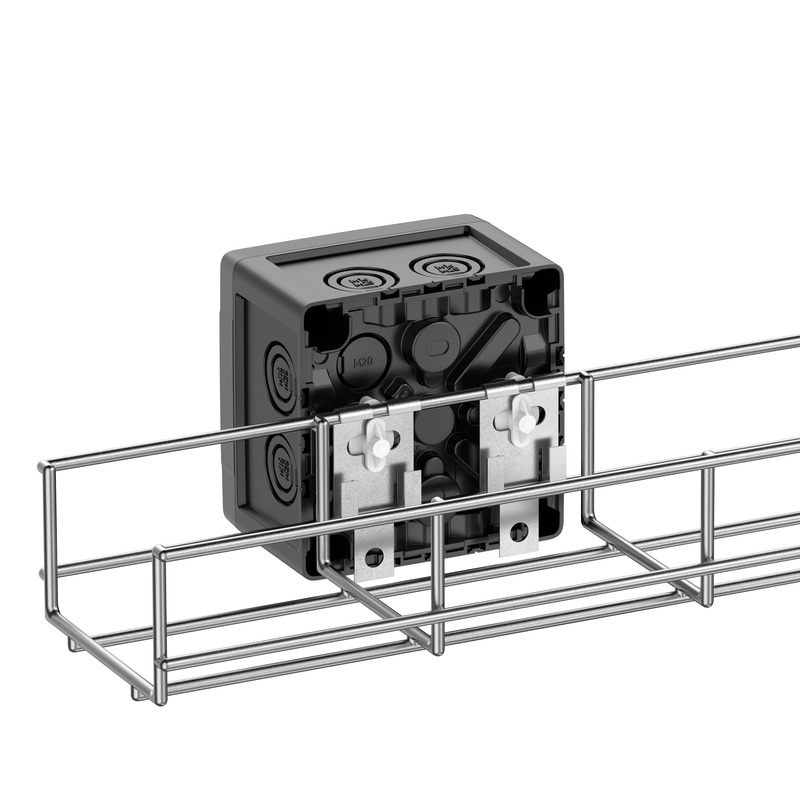

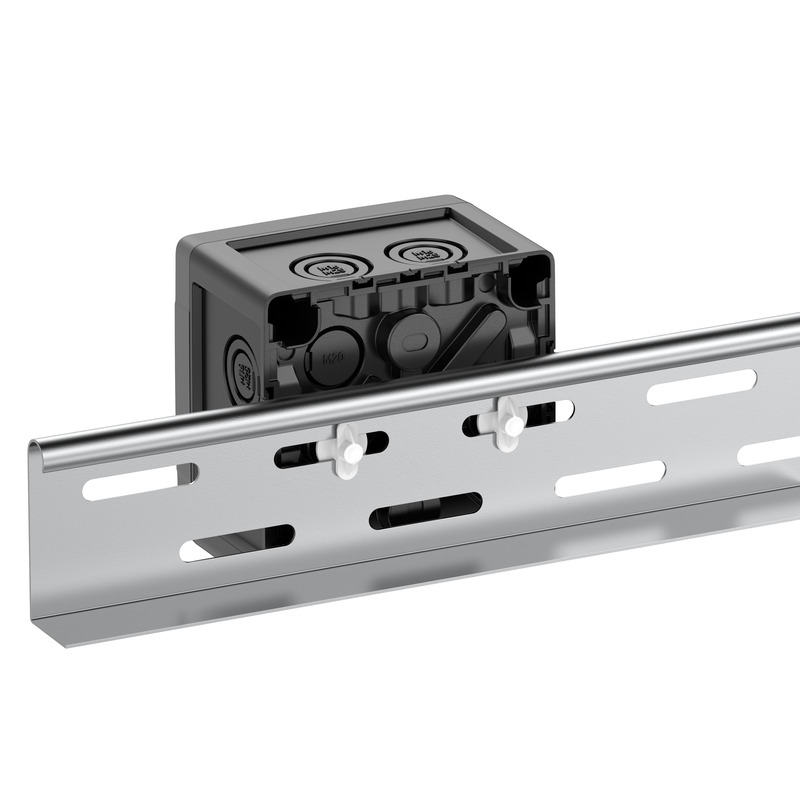

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm and mesh cable trays with Schnabl GTH 9001 mounts. With pan head screw 4 x 12, material PA6 grey, Set = 10 pieces
| Accessory colour | light grey |
|---|
| Width | 17 mm |
|---|---|
| Length | 30 mm |
| Height | 14 mm |
| Screw diameter | 4 mm |
| Weight | 0.028 kg |
| UV-resistant | yes |
|---|---|
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| for wall thickness max | 1.5 mm |
|---|---|
| for wall thickness min | 0.75 mm |
| Screw system | Pozidriv PZ |
| Load capacity | 3 kg |
| Torque | 1 Nm |
| EAN | 4013902686537 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002498 |
| Custom tariff number | 39269097 |
| Accessory material | Polyamide |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
