Locking bolt, IP68, M_ x 1.5 mm, polyamide, grey, for housing with internal thread. When using locknuts, maximum enclosure wall thickness of 3 mm
Thread length 6 mm

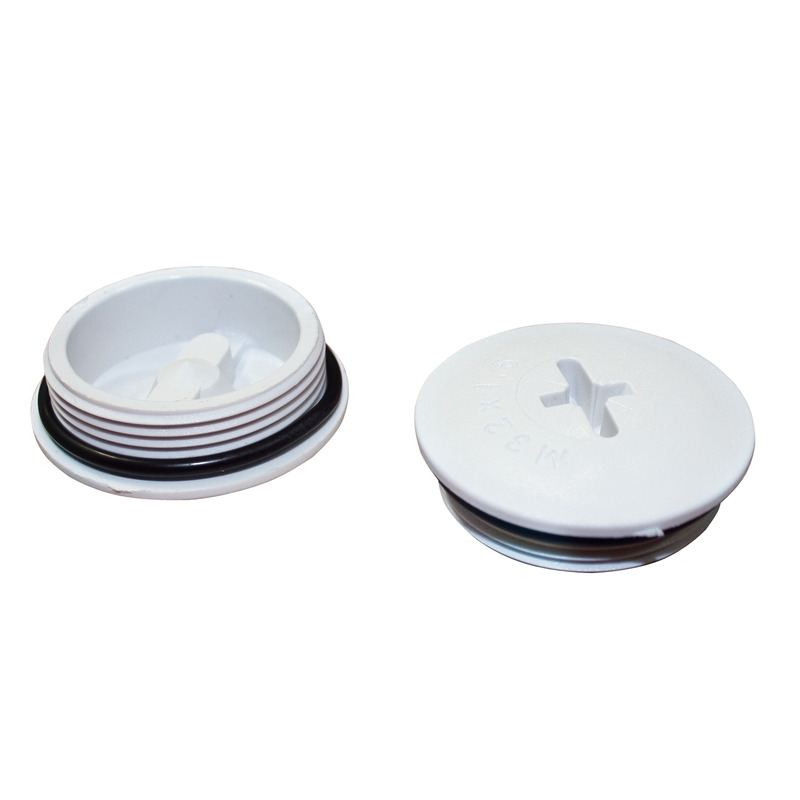

Blanking plug
VSS PA M16
Productnumber: 21111601 | Dimensions: 22 x 22 x 10 mm
- Find wholesaler
electrical characteristics
| Type of protection | IP68 |
|---|
Dimensions
| Width | 22 mm |
|---|---|
| Length | 22 mm |
| Height | 10 mm |
| Weight | 0.0015 kg |
Material characteristics
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 750 °C |
mechanical properties
| Thread type | metric |
|---|
Ambient conditions
| Installation location | unprotected outdoor areas |
|---|
Sales Information
| EAN | 4013902836413 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000032 |
| Custom tariff number | 39269097 |
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
